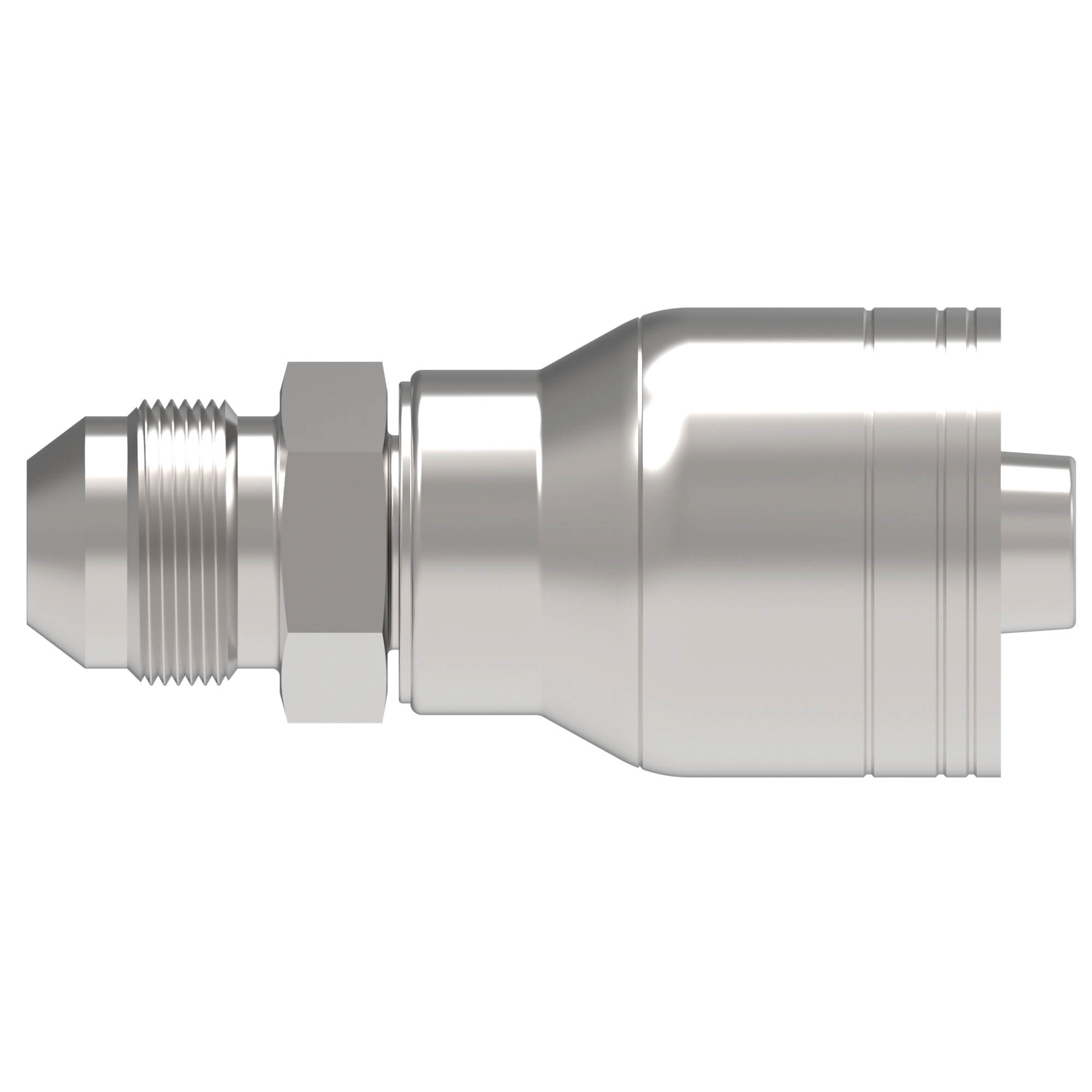

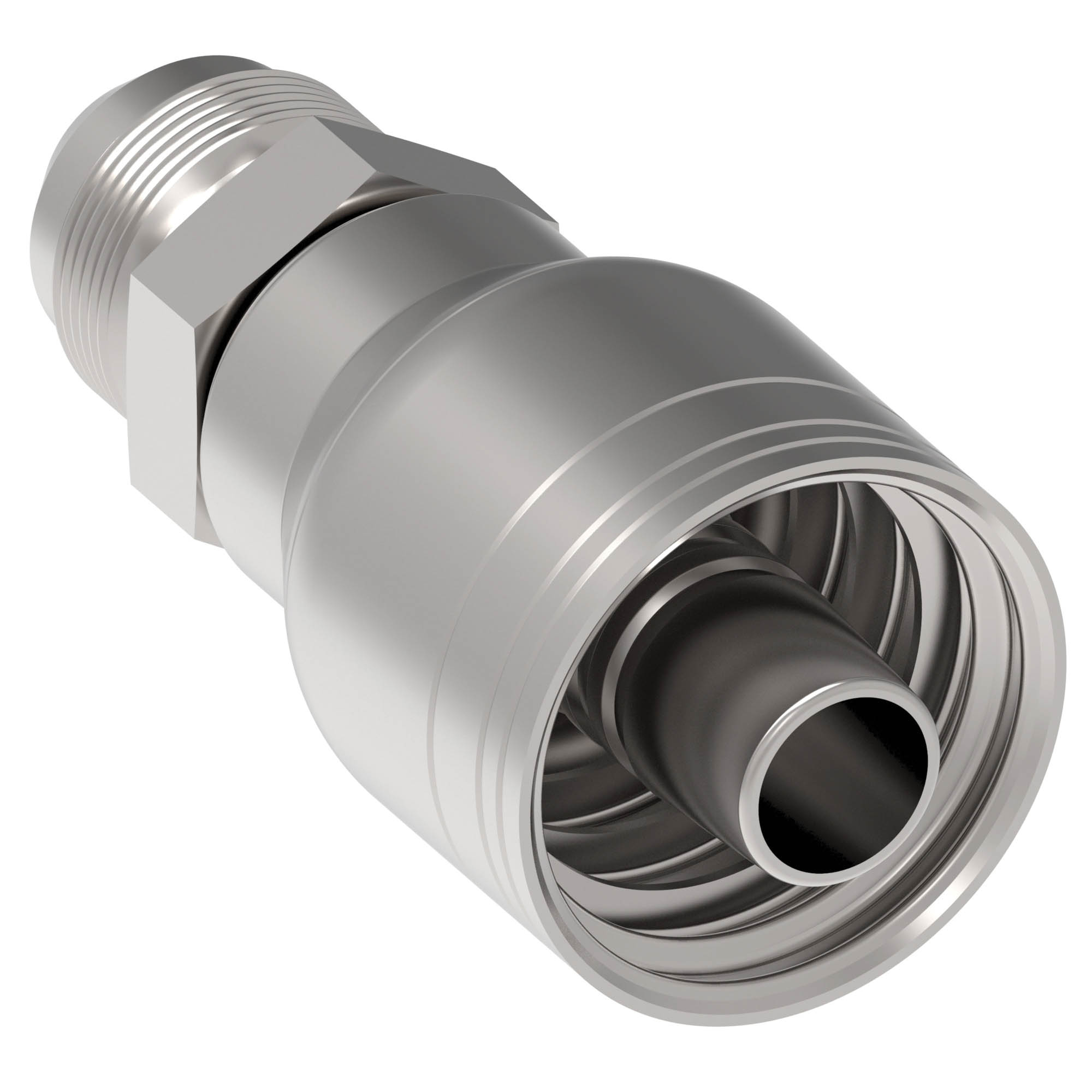

Aeroquip® by Danfoss 1A Series 1AA8MJ8 Straight Hose Fitting, 1/2 in Hose x 1/2 in Male SAE 37 deg JIC, Steel
NASHVILLE, TN
Available at All Branches
Aeroquip® by Danfoss Straight Hose Fitting, 1A Series, Hose Fitting Fitting, 1/2 in Connection Size 1, Connection Type 1: Hose, 1/2 in Connection Size 2, Connection Type 2: Male SAE 37 deg JIC, Hose|Male JIC Connection, 08 Hose Dash, 1.4 in Cut-Off Factor, Steel, Material Construction: Carbon Steel, Finish: Zinc-Plated, 3/4-16 Thread, 13/16 in Hex, For Use With: 2661, EC115, EC118, EC215, EC881, FC510, FC579, FC611, FC619, FC639, FC693, FC735, FC839B, FC849, FC849B, GH120, GH195, GH194, GH681, GH663, GH781, GH793 and WH004 Series Hoses, Dimension Standards: SAE J1176, 2.72 in L x 1.22 in W x 1.22 in H, Additional Information: Nitrile Seal
| Additional Information | : | Nitrile Seal |
| Connection Size 1 | : | 1/2 in |
| Connection Size 2 | : | 1/2 in |
| Connection Type 1 | : | Hose |
| Connection Type 2 | : | Male SAE 37 deg JIC |
| Connection Type | : | Hose|Male JIC |
| Cut-Off Factor | : | 1.4 in |
| Dimension Standards | : | SAE J1176 |
| Dimensions | : | 2.72 in L x 1.22 in W x 1.22 in H |
| Finish | : | Zinc-Plated |
| Fitting Type | : | Hose Fitting |
| For Use With | : | 2661, EC115, EC118, EC215, EC881, FC510, FC579, FC611, FC619, FC639, FC693, FC735, FC839B, FC849, FC849B, GH120, GH195, GH194, GH681, GH663, GH781, GH793 and WH004 Series Hoses |
| Hex Size | : | 13/16 in |
| Hose Dash Size | : | 08 |
| Material Construction | : | Carbon Steel |
| Material | : | Steel |
| Series | : | 1A Series |
| Thread Size | : | 3/4-16 |
