AIGNEP 60130-05 BR65PC-5-SS
  1. pin-int

AIGNEP 60130-05 BR65PC-5-SS

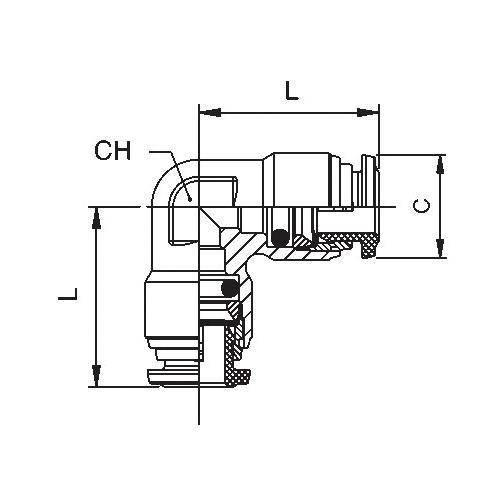

AIGNEP 60 Series 60130-05 Union Elbow, 5/16 in Push-to-Connect x 5/16 in Push-to-Connect, Stainless Steel

  • Manufacturer: Aignep USA
  • Brand Name: AIGNEP
  • Part#: BR65PC-5-SS
  • MPN: 60130-05
  • Qty. Interval: 1
  • loading NASHVILLE, TN
  • loading Available at All Branches
  • UOM: EA

AIGNEP Union Elbow, 60 Series, Elbow Fitting, 5/16 in Connection Size 1, Connection Type 1: Push-to-Connect, 5/16 in Connection Size 2, Connection Type 2: Push-to-Connect, Push-Fit|Push-Fit Connection, Stainless Steel, Material Construction: Stainless Steel, For Use With: Copper, Nylon, Polyethylene and Polyurethane Tubes, 290 psi, 5 to 437 deg F

Connection Size 1      :      5/16 in
Connection Size 2      :      5/16 in
Connection Type 1      :      Push-to-Connect
Connection Type 2      :      Push-to-Connect
Connection Type      :      Push-Fit|Push-Fit
Fitting Type      :      Elbow
For Use With      :      Copper, Nylon, Polyethylene and Polyurethane Tubes
Material Construction      :      Stainless Steel
Material      :      Stainless Steel
Pressure Rating      :      290 psi
Series      :      60 Series
Temperature Rating      :      5 to 437 deg F
  • The 316L stainless steel gripper ensures a tight clamp for tubes of any material without damaging the tube's surface, the secure connection between the tube and the fitting will hold up to severe conditions such as impact and vibrations
  • The shape of the safety ring and the molded seal perfectly seal off the tube, creating a vacuum
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/AIGNEP_60040-08_Catalog.pdf
