Alfagomma Hydraulic® AlfaCrimp B Series B-0808-FJ9L 1-Piece Non-Skive Crimp Fitting, 1/2 in Hose x
NASHVILLE, TN
Available at All Branches

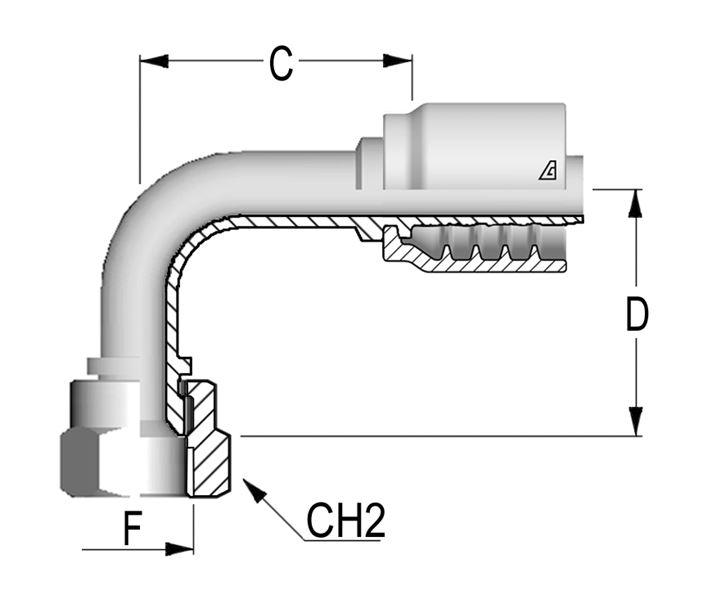

Alfagomma Hydraulic® AlfaCrimp 1-Piece Non-Skive Crimp Fitting, B Series, 90 deg Hose End Fitting Fitting, 1/2 in Connection Size 1, Connection Type 1: Hose, Connection Type 2: Female 37 deg JIC Long Seat Swivel, Hose|Female JIC Connection, 08 Hose Dash, 49.9 mm Cut-Off Factor, 3/4-16 Thread, For Use With: Up to 1 in ID Braided Hoses
| Connection Size 1 | : | 1/2 in |
| Connection Type 1 | : | Hose |
| Connection Type 2 | : | Female 37 deg JIC Long Seat Swivel |
| Connection Type | : | Hose|Female JIC |
| Cut-Off Factor | : | 49.9 mm |
| Fitting Type | : | 90 deg Hose End Fitting |
| For Use With | : | Up to 1 in ID Braided Hoses |
| Hose Dash Size | : | 08 |
| Series | : | B Series |
| Thread Size | : | 3/4-16 |
