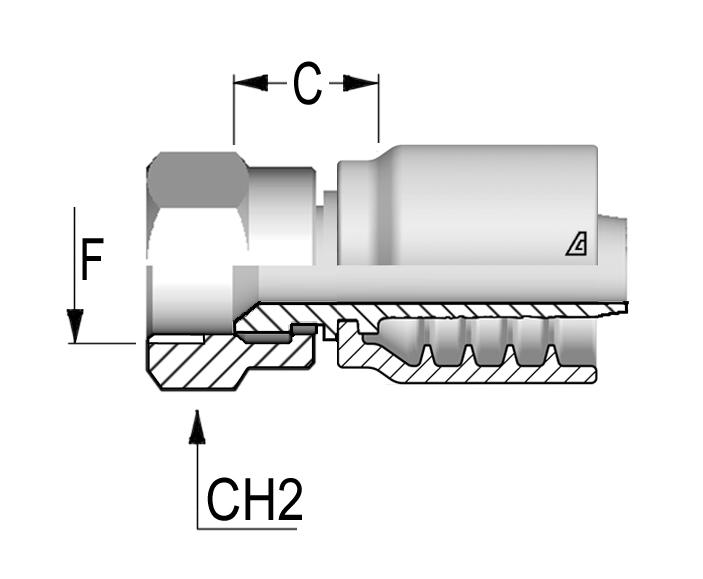

Alfagomma Hydraulic® AlfaCrimp B Series B-1214-FJSH 1-Piece Non-Skive Crimp Fitting, 3/4 in Hose x
NASHVILLE, TN
Available at All Branches
Alfagomma Hydraulic® AlfaCrimp 1-Piece Non-Skive Crimp Fitting, B Series, Hose End Fitting Fitting, 3/4 in Connection Size 1, Connection Type 1: Hose, Connection Type 2: Female 37 deg JIC Seat, Hose|Female JIC Connection, 12 Hose Dash, 19.9 mm Cut-Off Factor, 1-3/16-12 Thread, For Use With: Up to 1 in ID Braided Hoses, Additional Information: Single Hex
| Additional Information | : | Single Hex |
| Connection Size 1 | : | 3/4 in |
| Connection Type 1 | : | Hose |
| Connection Type 2 | : | Female 37 deg JIC Seat |
| Connection Type | : | Hose|Female JIC |
| Cut-Off Factor | : | 19.9 mm |
| Fitting Type | : | Hose End Fitting |
| For Use With | : | Up to 1 in ID Braided Hoses |
| Hose Dash Size | : | 12 |
| Series | : | B Series |
| Thread Size | : | 1-3/16-12 |
