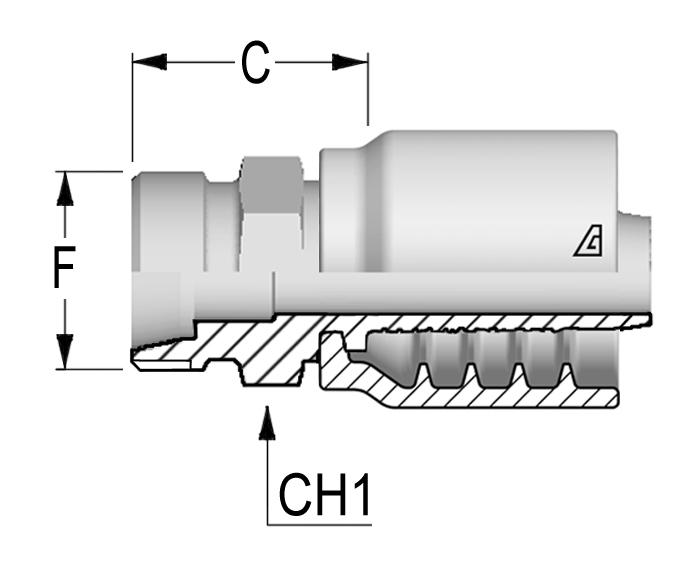

Alfagomma Hydraulic® AlfaCrimp B Series B-1230-MMSL 1-Piece Non-Skive Crimp Fitting, 3/4 in Hose x 22 mm
NASHVILLE, TN
Available at All Branches
Alfagomma Hydraulic® AlfaCrimp 1-Piece Non-Skive Crimp Fitting, B Series, Hose End Fitting Fitting, 3/4 in Connection Size 1, Connection Type 1: Hose, 22 mm Connection Size 2, Connection Type 2: Male Metric DIN Light 24 deg Seat, Hose|Male Metric Connection, 12 Hose Dash, 31.6 mm Cut-Off Factor, M30x2 Thread, For Use With: Up to 1 in ID Braided Hoses, Dimension Standards: DIN 3853, Additional Information: 22 mm OD Tube
| Additional Information | : | 22 mm OD Tube |
| Connection Size 1 | : | 3/4 in |
| Connection Size 2 | : | 22 mm |
| Connection Type 1 | : | Hose |
| Connection Type 2 | : | Male Metric DIN Light 24 deg Seat |
| Connection Type | : | Hose|Male Metric |
| Cut-Off Factor | : | 31.6 mm |
| Dimension Standards | : | DIN 3853 |
| Fitting Type | : | Hose End Fitting |
| For Use With | : | Up to 1 in ID Braided Hoses |
| Hose Dash Size | : | 12 |
| Series | : | B Series |
| Thread Size | : | M30x2 |
