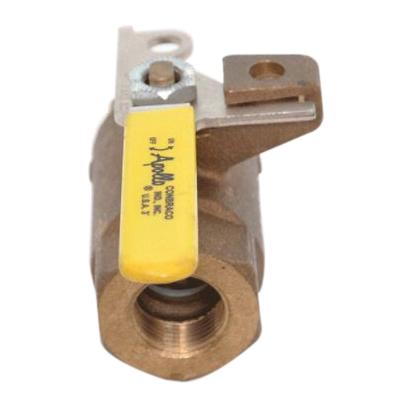

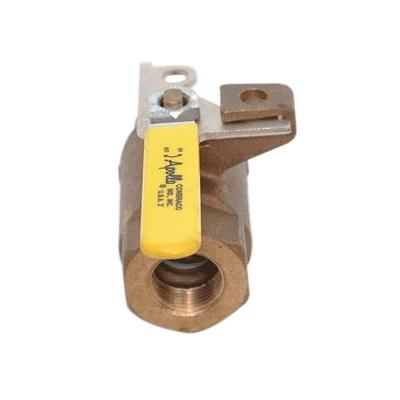

Apollo® 75-100 Series 75-105-01 Ball Valve, 1 in, IPS, Bronze, 600 psi
NASHVILLE, TN
Available at All Branches
This Apollo® ball valve meets OSHA standards and provides for easy, safe maintenance of pneumatic tools. Valve can be padlocked in the open or closed position with the same hardware.
Apollo® Ball Valve, 75-100 Series, 1 in Nominal, IPS Connection, Standard Port, 600 psi, 3.37 in Inlet to Outlet Length, 2-1/4 in Top to Inlet Center, 0.87 in Opening, Lever Operator, Material Standard: ASTM B584 Grade C84400, ASTM B16, ASTM B283 Grade C37700, Bronze Body, RPTFE Seat, Brass Stem, MPTFE Packing, Steel Handle, Brass Ball, 50 to 200 deg F, Domestic/Import: Domestic
| Ball Material | : | Brass |
| Body Material | : | Bronze |
| Connection Type | : | IPS |
| Domestic/Import | : | Domestic |
| Handle Material | : | Steel |
| Inlet to Outlet Length | : | 3.37 in |
| Material Standard | : | ASTM B584 Grade C84400, ASTM B16, ASTM B283 Grade C37700 |
| Nominal Size | : | 1 in |
| Opening Size | : | 0.87 in |
| Operator Type | : | Lever |
| Packing Material | : | MPTFE |
| Port Type | : | Standard |
| Pressure Rating | : | 600 psi |
| Seat Material | : | RPTFE |
| Series | : | 75-100 Series |
| Stem Material | : | Brass |
| Temperature Rating | : | 50 to 200 deg F |
| Top to Inlet Center | : | 2-1/4 in |
