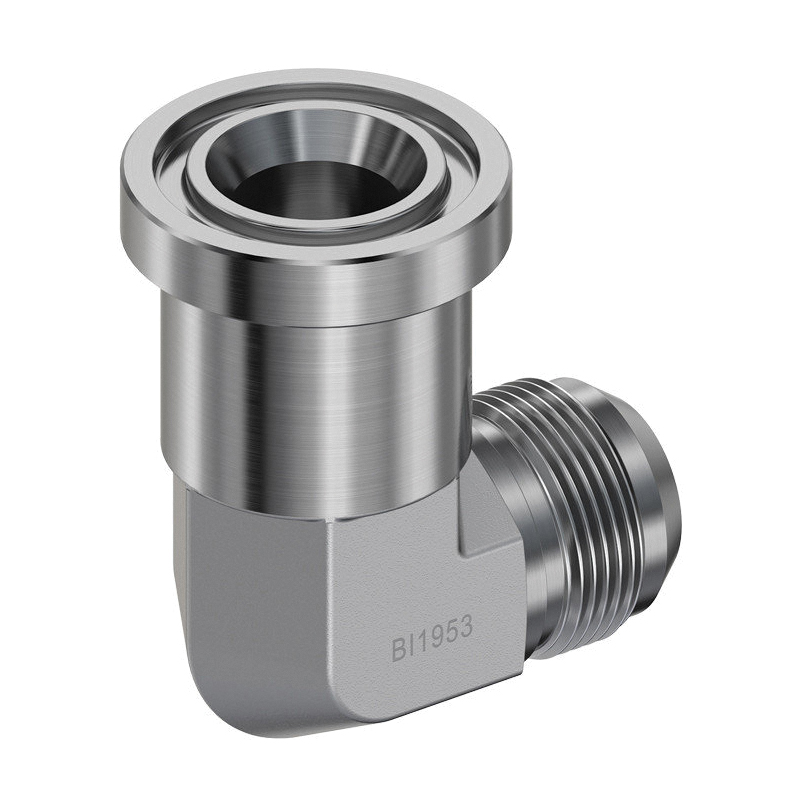

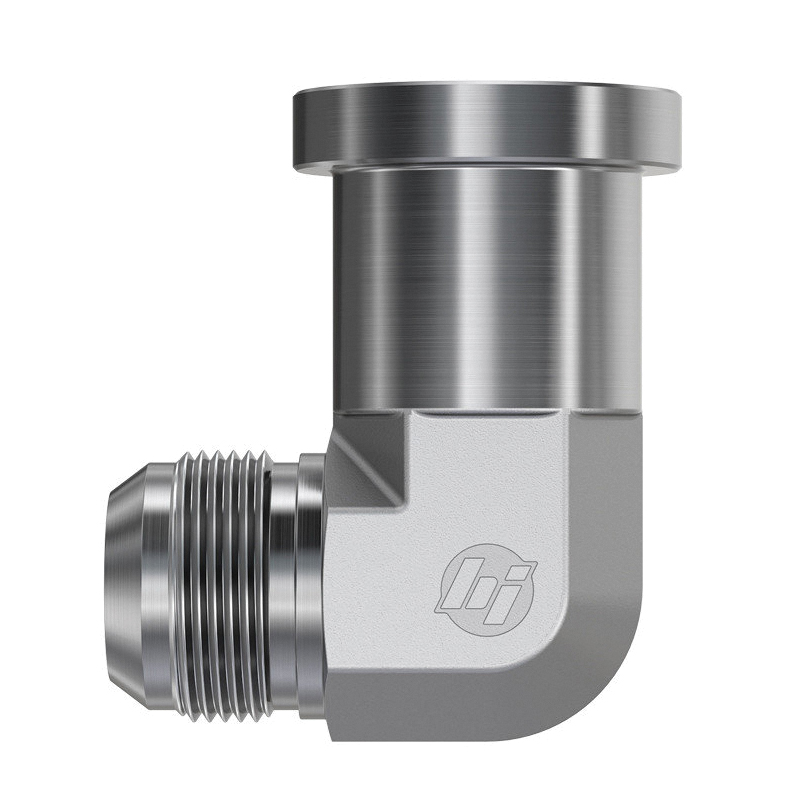

BRENNAN 1804-16-12-FG Elbow, 1 in Male SAE 37 deg JIC x 3/4 in SAE Code 62 Flange, Steel
NASHVILLE, TN
Available at All Branches
BRENNAN Elbow, 1804-FG Series, 90 deg Elbow Fitting, 1 in Connection Size 1, Connection Type 1: Male SAE 37 deg JIC, 3/4 in Connection Size 2, Connection Type 2: SAE Code 62 Flange, Male JIC|Flanged Connection, Steel, Material Construction: AISI C1045 Steel, Finish: Trivalent Zinc-Plated, 1-5/16-12 Thread, 1-5/16 in Hex, Dimension Standards: SAE J514, SAE J518, 5000 psi Maximum Operating Pressure, -65 to 500 deg F Operating Temperature
| Connection Size 1 | : | 1 in |
| Connection Size 2 | : | 3/4 in |
| Connection Type 1 | : | Male SAE 37 deg JIC |
| Connection Type 2 | : | SAE Code 62 Flange |
| Connection Type | : | Male JIC|Flanged |
| Dimension Standards | : | SAE J514, SAE J518 |
| Finish | : | Trivalent Zinc-Plated |
| Fitting Type | : | 90 deg Elbow |
| Hex Size | : | 1-5/16 in |
| Material Construction | : | AISI C1045 Steel |
| Material | : | Steel |
| Maximum Operating Pressure | : | 5000 psi |
| Operating Temperature | : | -65 to 500 deg F |
| Series | : | 1804-FG Series |
| Thread Size | : | 1-5/16-12 |
