BRENNAN 2403-10-10 HY10MJ-10MJ
  1. pin-int

BRENNAN 2403-10-10 HY10MJ-10MJ

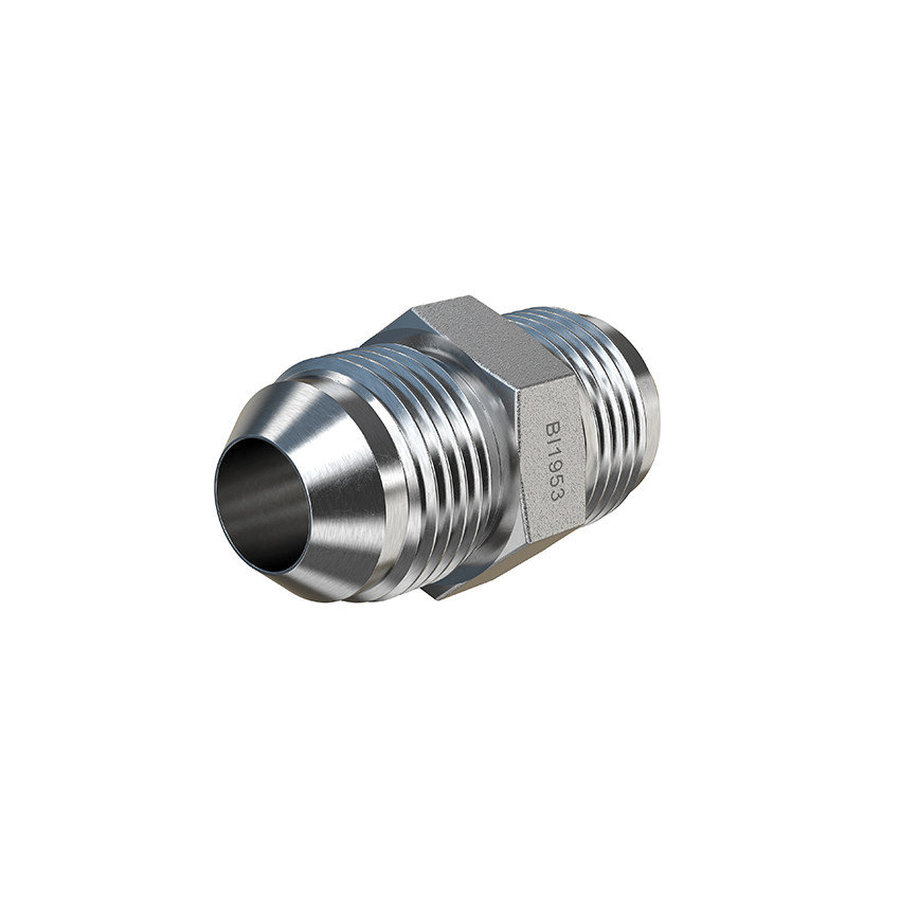

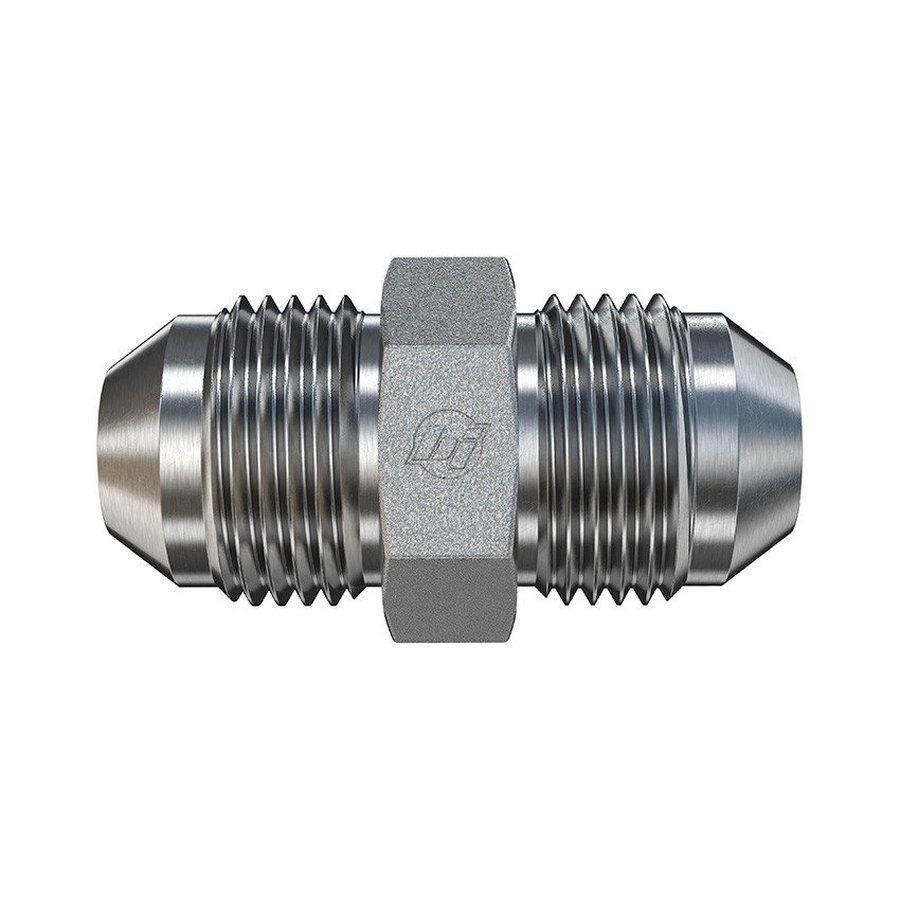

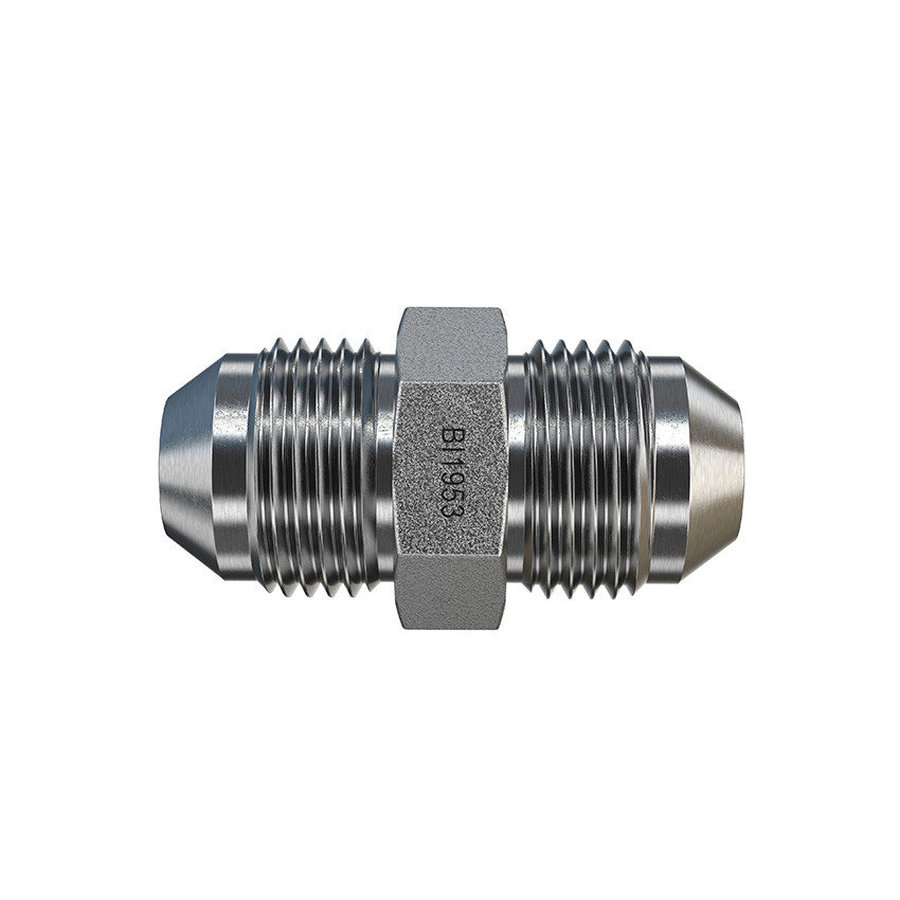

BRENNAN 2403-10-10 Straight Adapter, 5/8 in Male SAE 37 deg JIC Flare x 5/8 in Male SAE 37 deg JIC Flare, Steel

  • Manufacturer: Brennan Industries
  • Brand Name: BRENNAN
  • Part#: HY10MJ-10MJ
  • MPN: 2403-10-10
  • Qty. Interval: 1
  • loading NASHVILLE, TN
  • loading Available at All Branches
  • UOM: EA

BRENNAN Straight Adapter, 2403 Series, Adapter Fitting, 5/8 in Connection Size 1, Connection Type 1: Male SAE 37 deg JIC Flare, 5/8 in Connection Size 2, Connection Type 2: Male SAE 37 deg JIC Flare, Male JIC|Male JIC Connection, Steel, Material Construction: 12L14/C1045 Steel, Finish: Trivalent Zinc-Plated, 7/8-14 Thread, 0.937 in Hex, Dimension Standards: SAE J514, 1.88 in L, 5000 psi Maximum Operating Pressure, -65 to 500 deg F Operating Temperature

Connection Size 1      :      5/8 in
Connection Size 2      :      5/8 in
Connection Type 1      :      Male SAE 37 deg JIC Flare
Connection Type 2      :      Male SAE 37 deg JIC Flare
Connection Type      :      Male JIC|Male JIC
Dimension Standards      :      SAE J514
Dimensions      :      1.88 in L
Finish      :      Trivalent Zinc-Plated
Fitting Type      :      Adapter
Hex Size      :      0.937 in
Material Construction      :      12L14/C1045 Steel
Material      :      Steel
Maximum Operating Pressure      :      5000 psi
Operating Temperature      :      -65 to 500 deg F
Series      :      2403 Series
Thread Size      :      7/8-14
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/BRENNAN_0304_C_02_Catalog.pdf
  • pdfFull Engineering Drawing https://assets.unilogcorp.com/267/ITEM/DOC/BRENNAN_2403_10_10_Full_Engineering_Drawing.pdf
