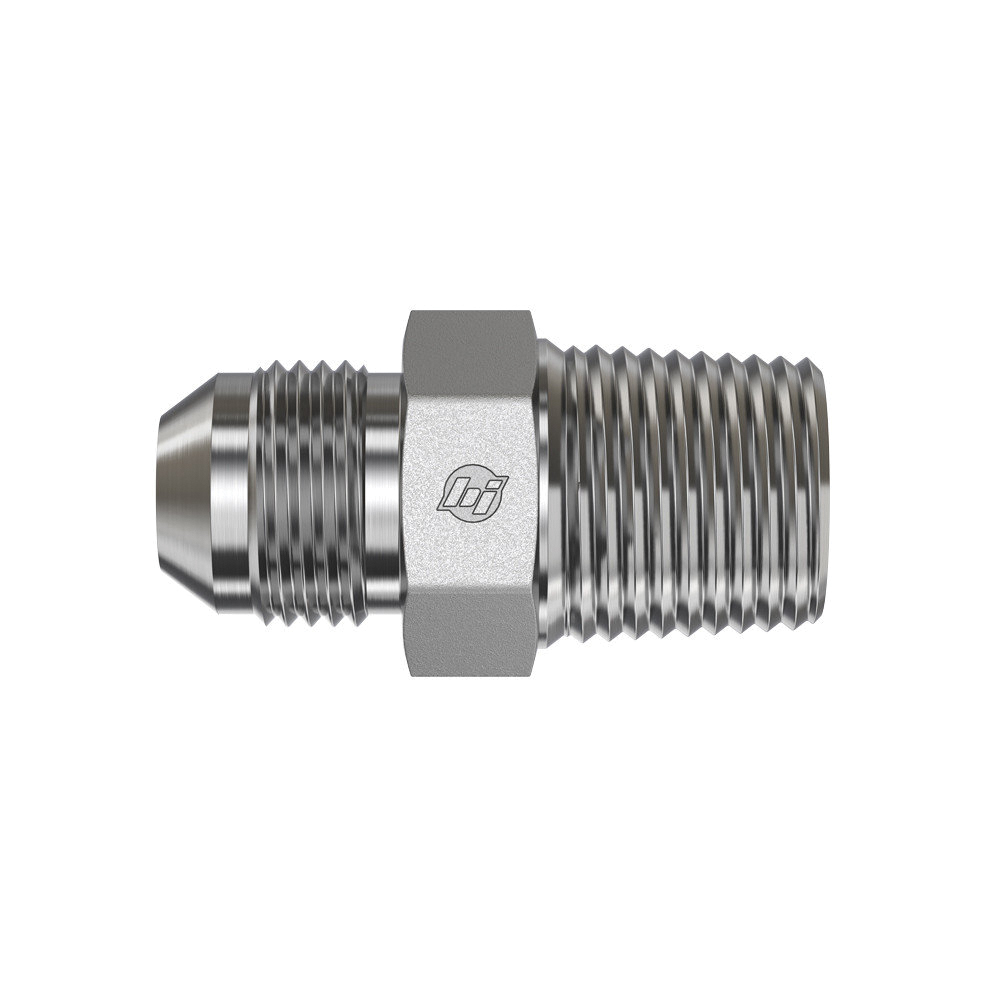

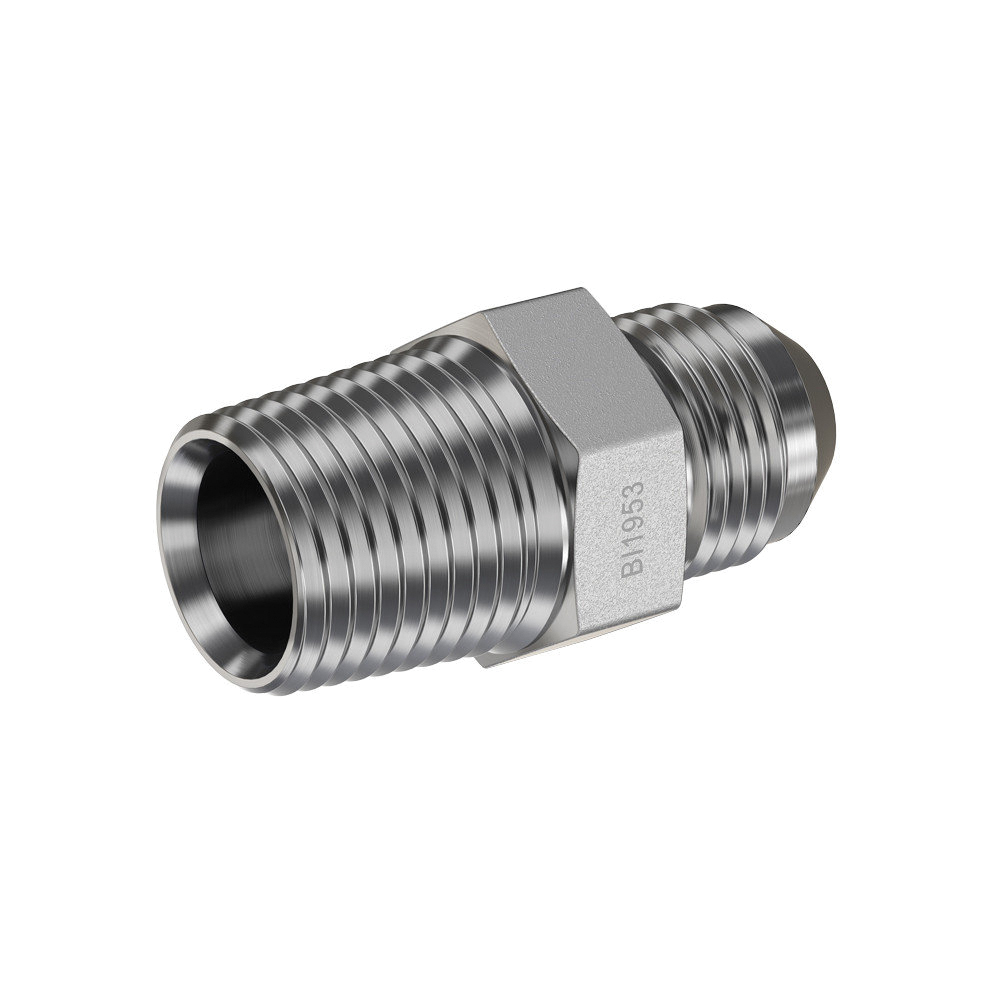

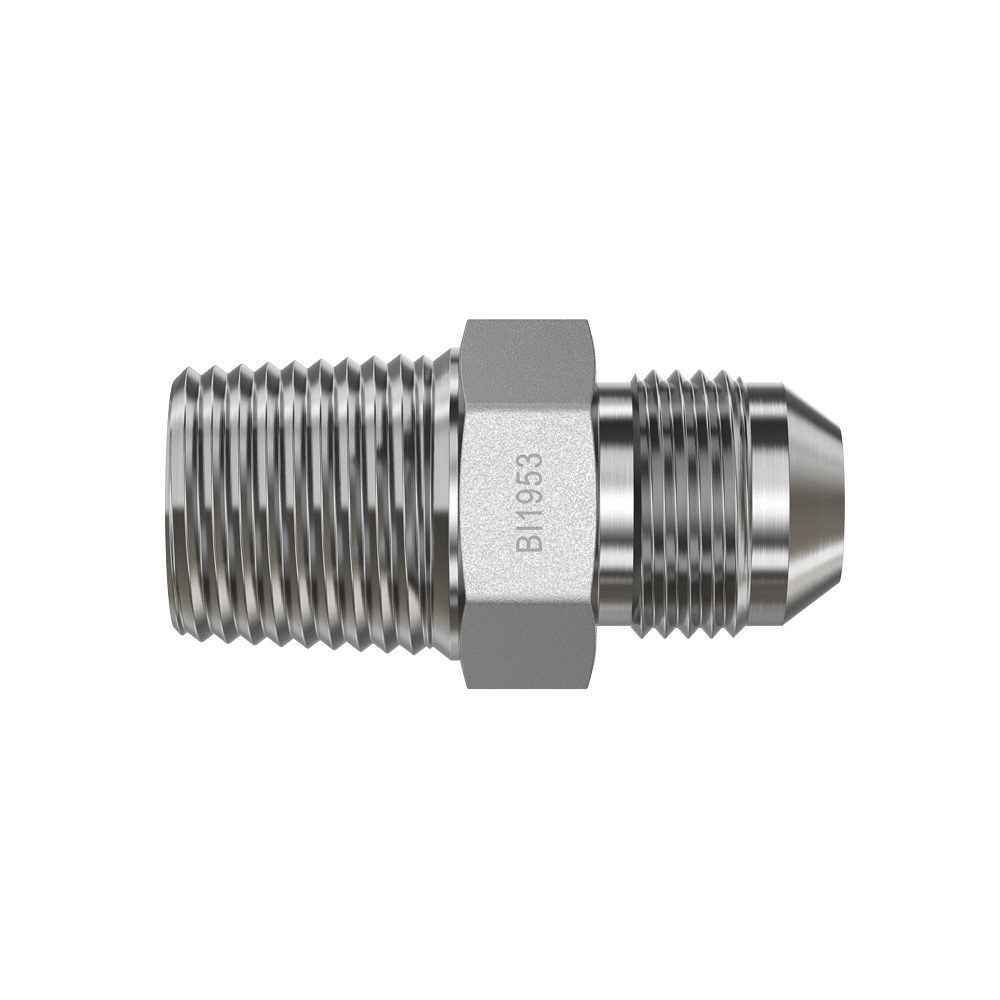

BRENNAN 2404-24-16 Straight Adapter, 1-1/2 in Male SAE 37 deg JIC Flare x 1 in Male SAE NPTF, Steel
NASHVILLE, TN
Available at All Branches
BRENNAN Straight Adapter, 2404 Series, Adapter Fitting, 1-1/2 in Connection Size 1, Connection Type 1: Male SAE 37 deg JIC Flare, 1 in Connection Size 2, Connection Type 2: Male SAE NPTF, Male JIC|MNPT Connection, Steel, Material Construction: 12L14/C1045 Steel, Finish: Trivalent Zinc-Plated, 1-7/8-12 x 1-11-1/2 Thread, 2 in Hex, Dimension Standards: SAE J514, SAE J476, 2.62 in L, 3000 psi Maximum Operating Pressure, -65 to 500 deg F Operating Temperature
| Connection Size 1 | : | 1-1/2 in |
| Connection Size 2 | : | 1 in |
| Connection Type 1 | : | Male SAE 37 deg JIC Flare |
| Connection Type 2 | : | Male SAE NPTF |
| Connection Type | : | Male JIC|MNPT |
| Dimension Standards | : | SAE J514, SAE J476 |
| Dimensions | : | 2.62 in L |
| Finish | : | Trivalent Zinc-Plated |
| Fitting Type | : | Adapter |
| Hex Size | : | 2 in |
| Material Construction | : | 12L14/C1045 Steel |
| Material | : | Steel |
| Maximum Operating Pressure | : | 3000 psi |
| Operating Temperature | : | -65 to 500 deg F |
| Series | : | 2404 Series |
| Thread Size | : | 1-7/8-12 x 1-11-1/2 |
