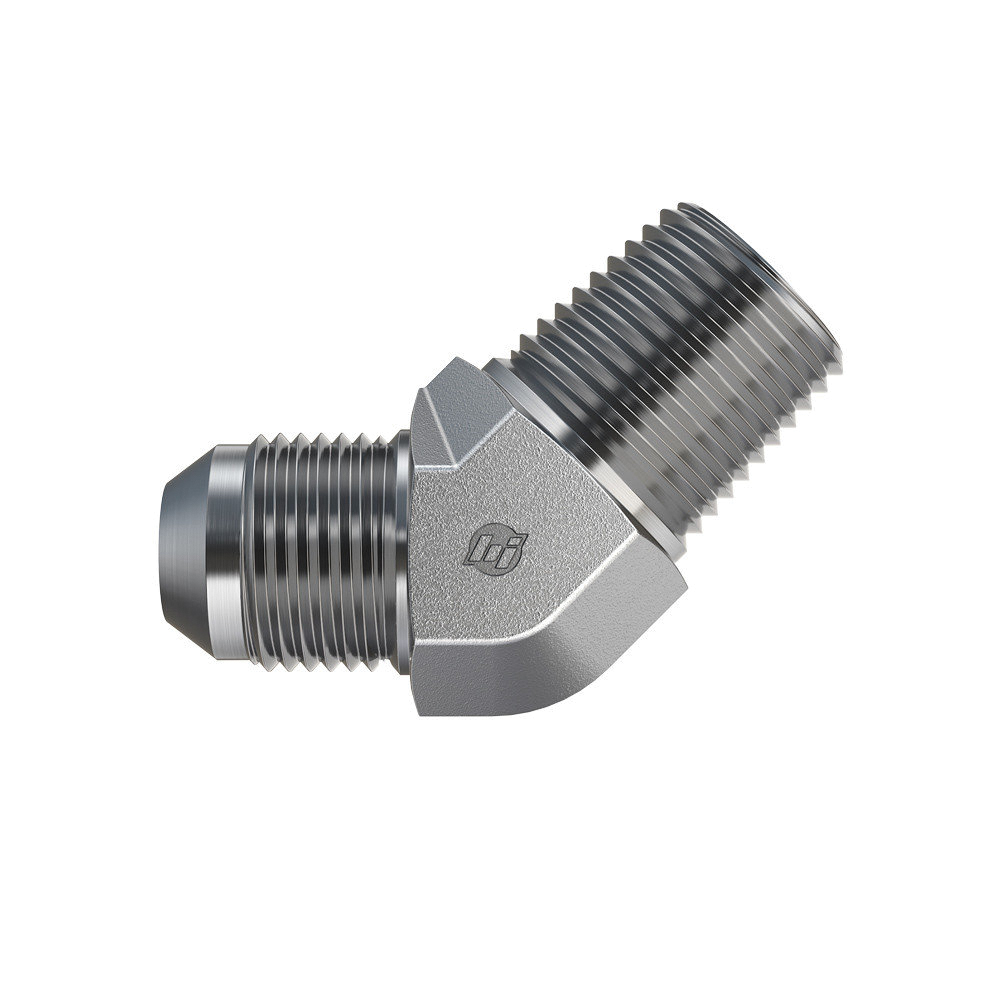

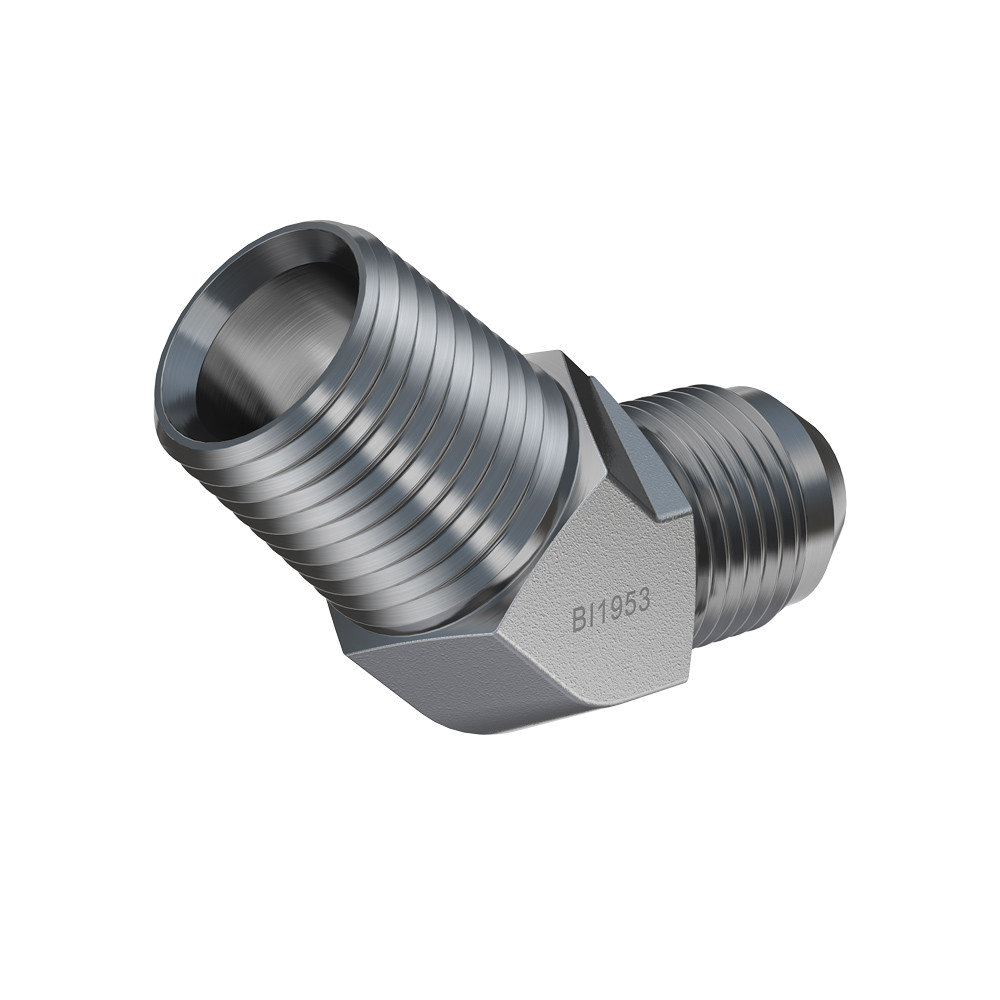

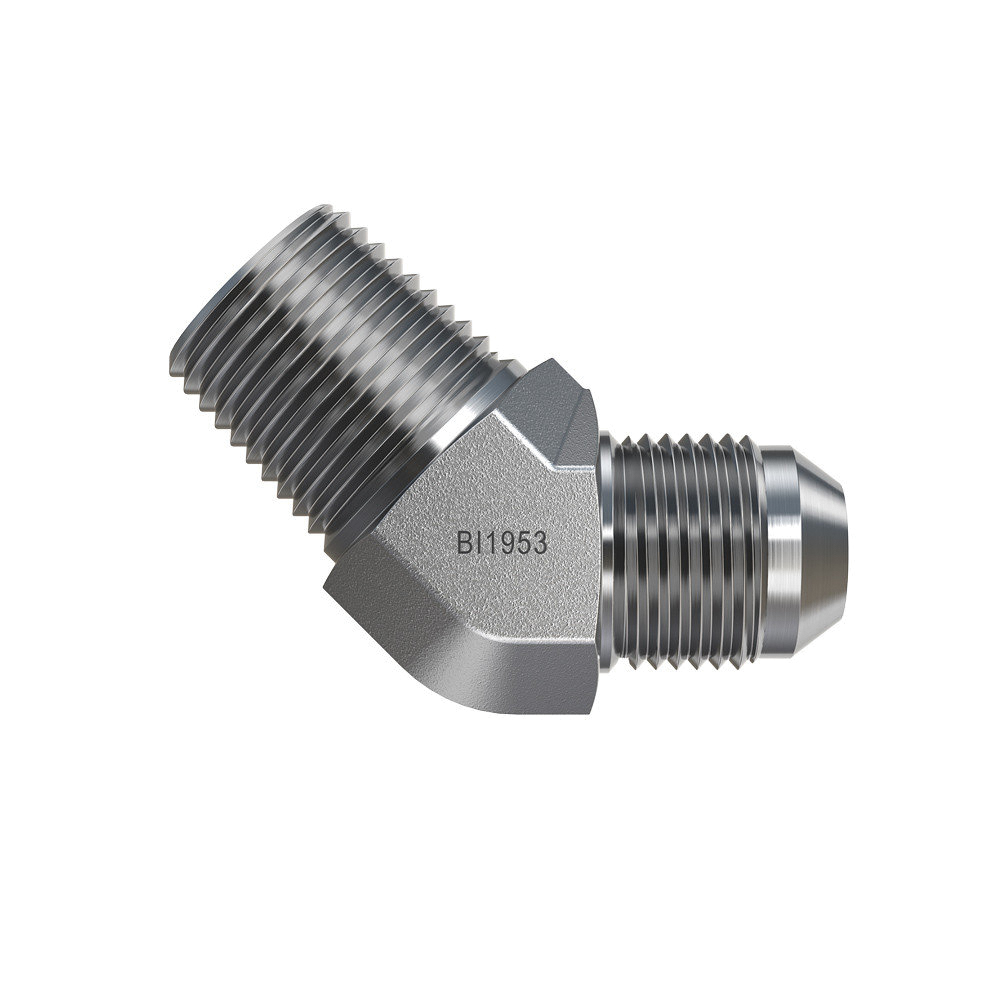

BRENNAN 2503-06-04-FG 45 deg Elbow, 3/8 in Male SAE 37 deg JIC Flare x 1/4 in Male SAE NPTF, Steel
NASHVILLE, TN
Available at All Branches
BRENNAN 45 deg Elbow, 2503-FG Series, 45 deg Elbow Fitting, 3/8 in Connection Size 1, Connection Type 1: Male SAE 37 deg JIC Flare, 1/4 in Connection Size 2, Connection Type 2: Male SAE NPTF, Male JIC|MNPT Connection, Steel, Material Construction: AISI C1045 Steel, Finish: Trivalent Zinc-Plated, 9/16-18 x 1/4-18 Thread, 0.562 in Hex, Dimension Standards: SAE J514, SAE J476, 6000 psi Maximum Operating Pressure, -65 to 500 deg F Operating Temperature
| Connection Size 1 | : | 3/8 in |
| Connection Size 2 | : | 1/4 in |
| Connection Type 1 | : | Male SAE 37 deg JIC Flare |
| Connection Type 2 | : | Male SAE NPTF |
| Connection Type | : | Male JIC|MNPT |
| Dimension Standards | : | SAE J514, SAE J476 |
| Finish | : | Trivalent Zinc-Plated |
| Fitting Type | : | 45 deg Elbow |
| Hex Size | : | 0.562 in |
| Material Construction | : | AISI C1045 Steel |
| Material | : | Steel |
| Maximum Operating Pressure | : | 6000 psi |
| Operating Temperature | : | -65 to 500 deg F |
| Series | : | 2503-FG Series |
| Thread Size | : | 9/16-18 x 1/4-18 |
