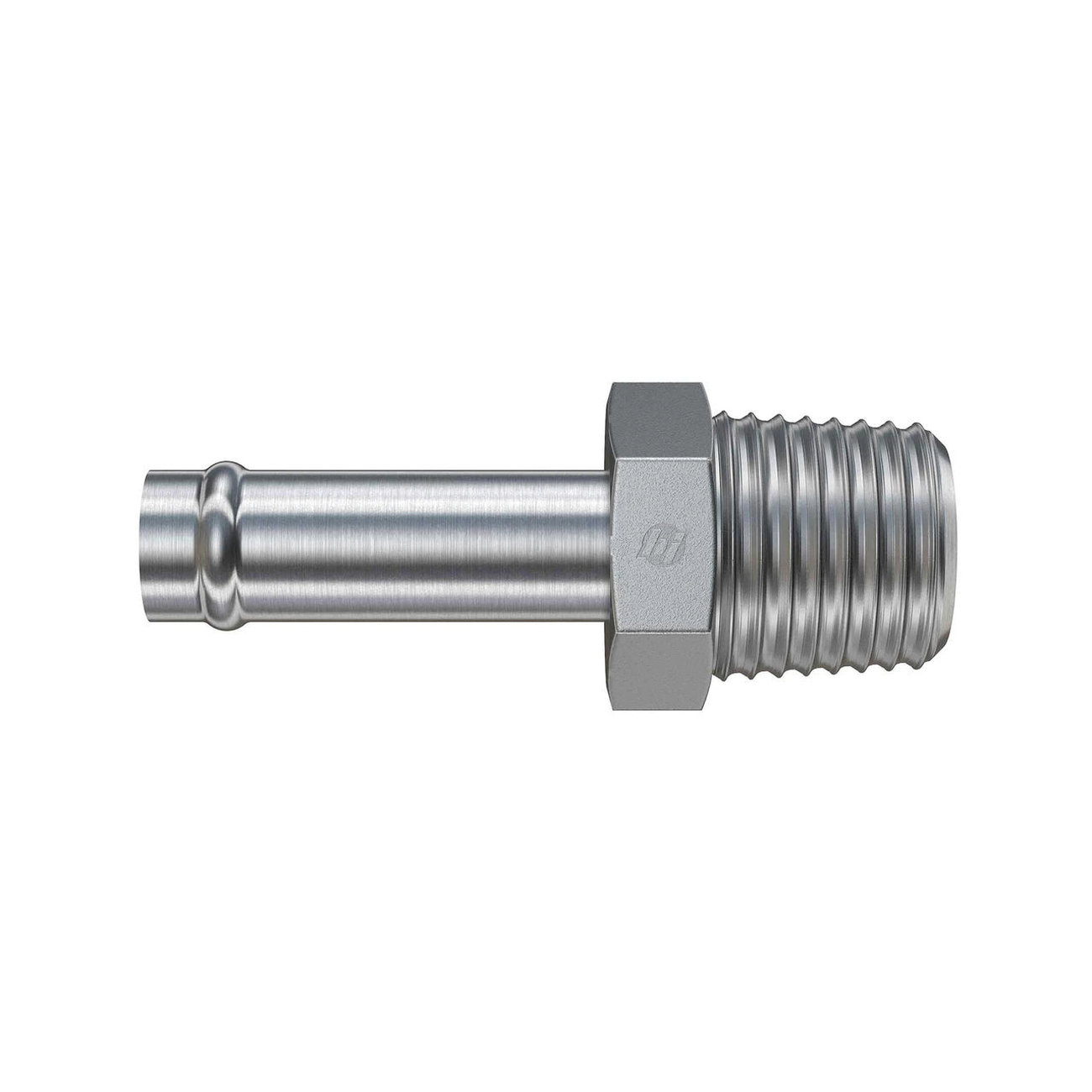

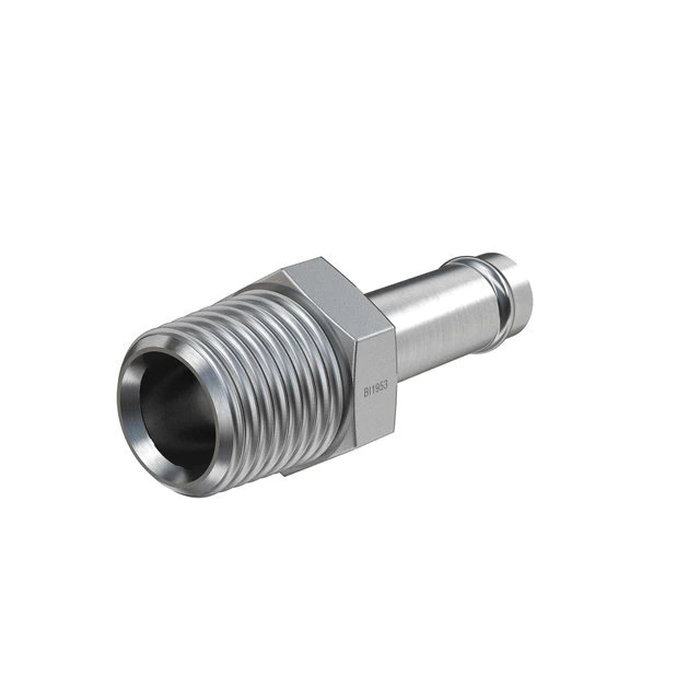

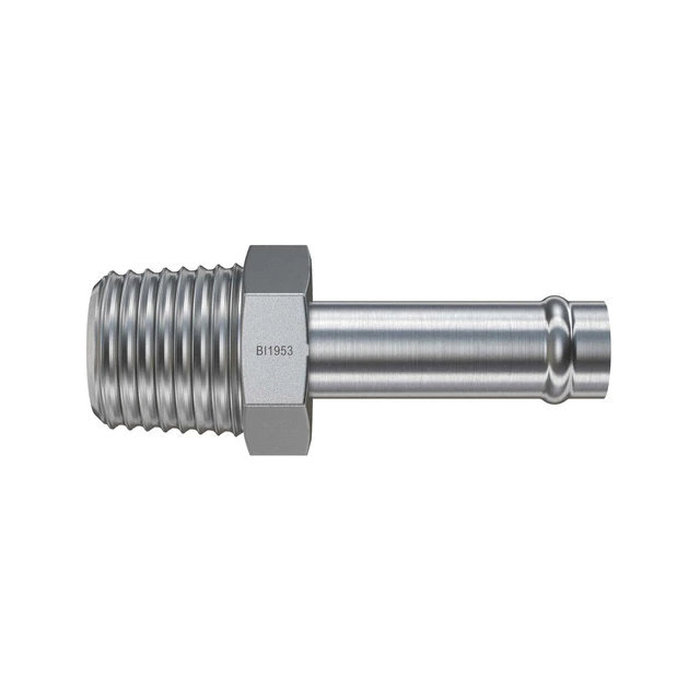

BRENNAN 4404-12-08 Straight Adapter, 3/4 in SAE Beaded Hose Barbed x 1/2 in Male SAE 30 deg NPTF, Steel
NASHVILLE, TN
Available at All Branches
BRENNAN Straight Adapter, 4404 Series, Adapter Fitting, 3/4 in Connection Size 1, Connection Type 1: SAE Beaded Hose Barbed, 1/2 in Connection Size 2, Connection Type 2: Male SAE 30 deg NPTF, Barbed|MNPT Connection, Steel, Material Construction: 12L14/C1045 Steel, Finish: Trivalent Zinc-Plated, 1/2-14 Thread, 0.937 in Hex, Dimension Standards: SAE J1231-2, SAE J476, 2.6 in L, 150 psi Maximum Operating Pressure, -65 to 500 deg F Operating Temperature
| Connection Size 1 | : | 3/4 in |
| Connection Size 2 | : | 1/2 in |
| Connection Type 1 | : | SAE Beaded Hose Barbed |
| Connection Type 2 | : | Male SAE 30 deg NPTF |
| Connection Type | : | Barbed|MNPT |
| Dimension Standards | : | SAE J1231-2, SAE J476 |
| Dimensions | : | 2.6 in L |
| Finish | : | Trivalent Zinc-Plated |
| Fitting Type | : | Adapter |
| Hex Size | : | 0.937 in |
| Material Construction | : | 12L14/C1045 Steel |
| Material | : | Steel |
| Maximum Operating Pressure | : | 150 psi |
| Operating Temperature | : | -65 to 500 deg F |
| Series | : | 4404 Series |
| Thread Size | : | 1/2-14 |
