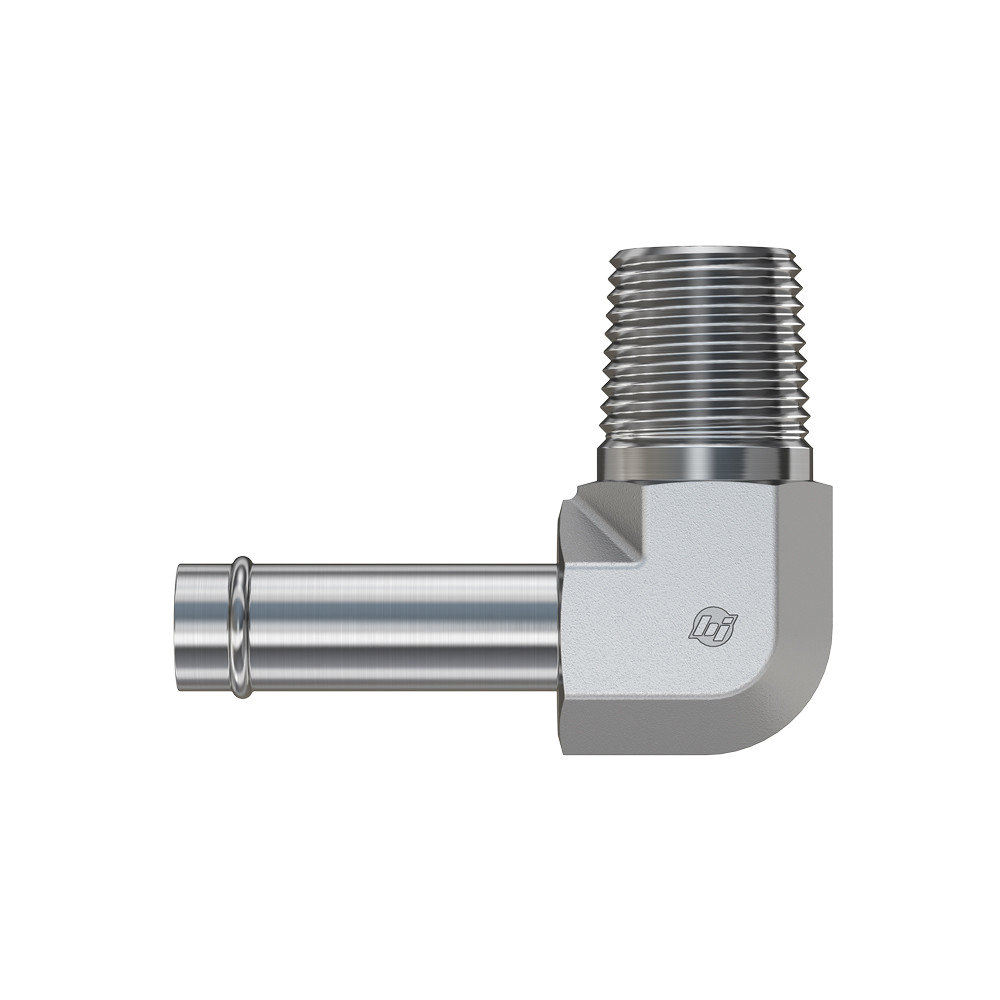

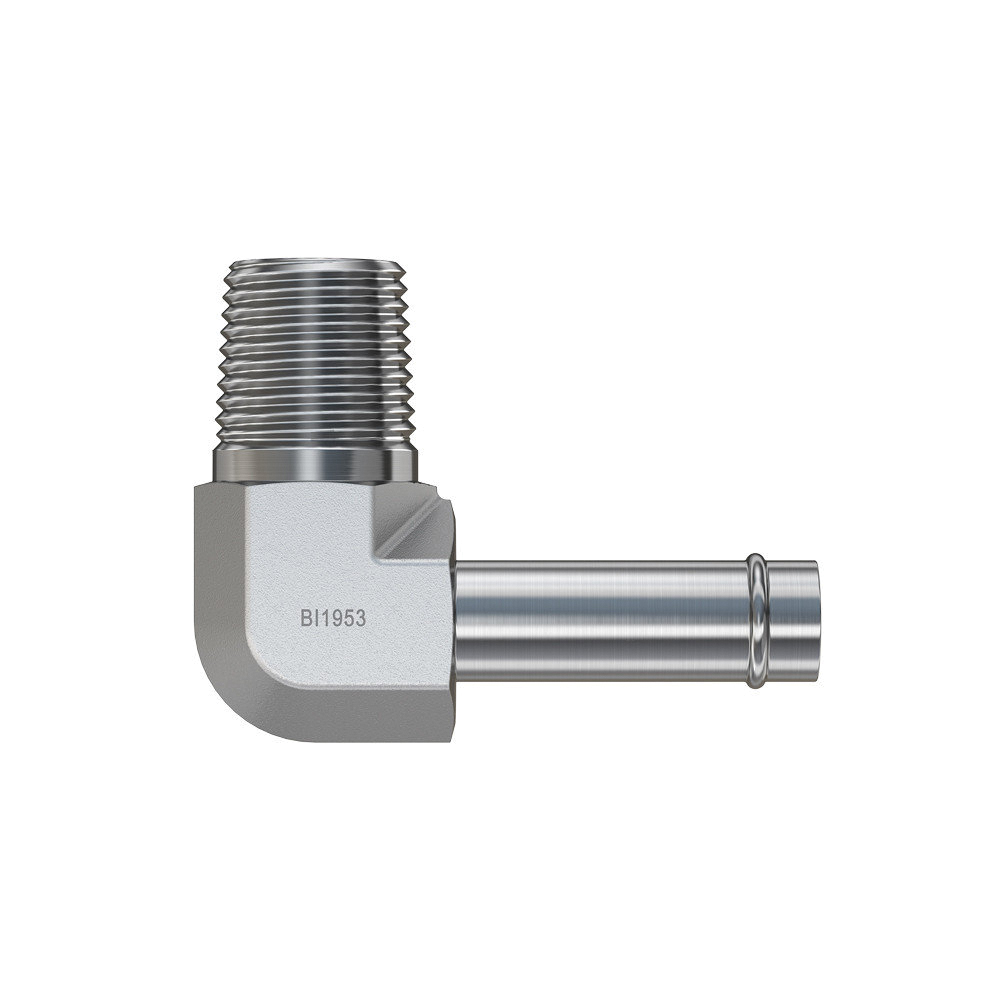

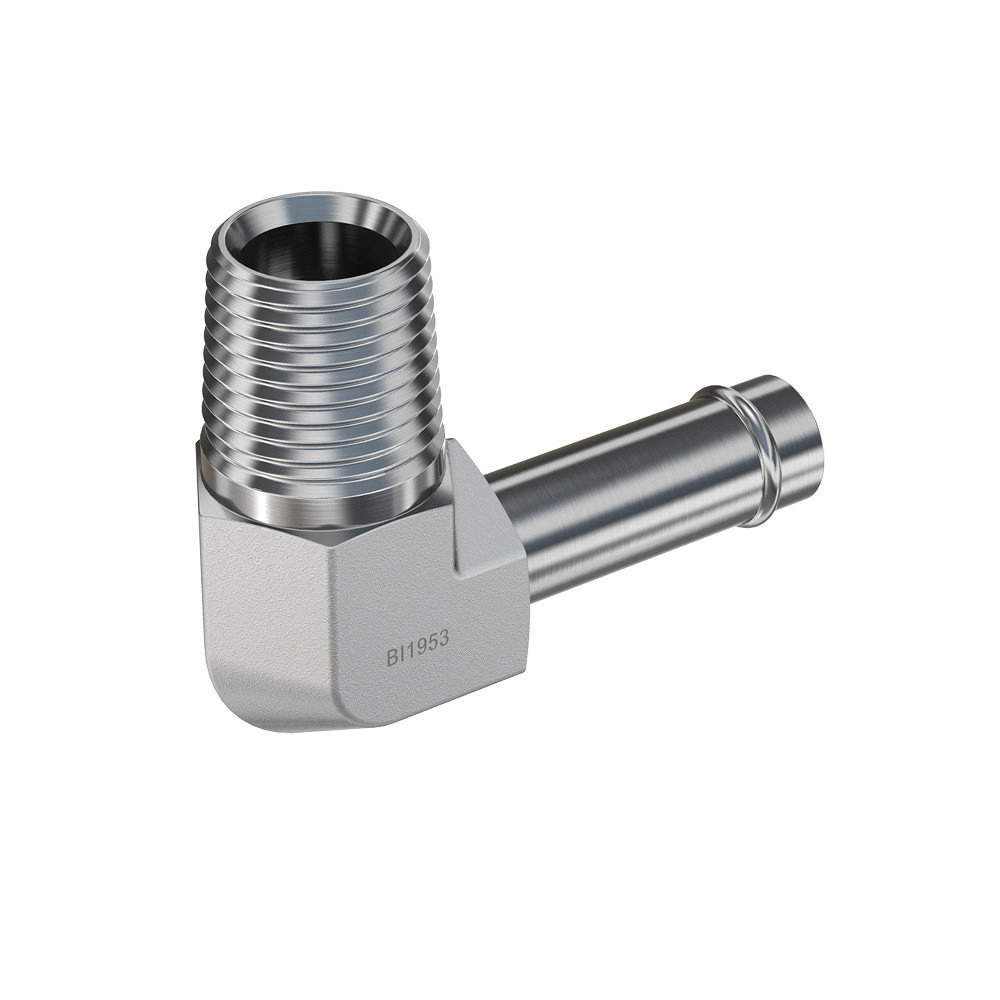

BRENNAN 4501-06-02-FG 90 deg Elbow, 3/8 in SAE Beaded Hose Barbed x 1/8 in Male SAE 30 deg NPTF, Steel
NASHVILLE, TN
Available at All Branches
BRENNAN 90 deg Elbow, 4501-FG Series, 90 deg Elbow Fitting, 3/8 in Connection Size 1, Connection Type 1: SAE Beaded Hose Barbed, 1/8 in Connection Size 2, Connection Type 2: Male SAE 30 deg NPTF, Barbed|MNPT Connection, Steel, Material Construction: AISI C1045 Steel, Finish: Trivalent Zinc-Plated, 1/8-27 Thread, 1/2 in Hex, Dimension Standards: SAE J1231-2, SAE J476, 150 psi Maximum Operating Pressure, -65 to 500 deg F Operating Temperature
| Connection Size 1 | : | 3/8 in |
| Connection Size 2 | : | 1/8 in |
| Connection Type 1 | : | SAE Beaded Hose Barbed |
| Connection Type 2 | : | Male SAE 30 deg NPTF |
| Connection Type | : | Barbed|MNPT |
| Dimension Standards | : | SAE J1231-2, SAE J476 |
| Finish | : | Trivalent Zinc-Plated |
| Fitting Type | : | 90 deg Elbow |
| Hex Size | : | 1/2 in |
| Material Construction | : | AISI C1045 Steel |
| Material | : | Steel |
| Maximum Operating Pressure | : | 150 psi |
| Operating Temperature | : | -65 to 500 deg F |
| Series | : | 4501-FG Series |
| Thread Size | : | 1/8-27 |
