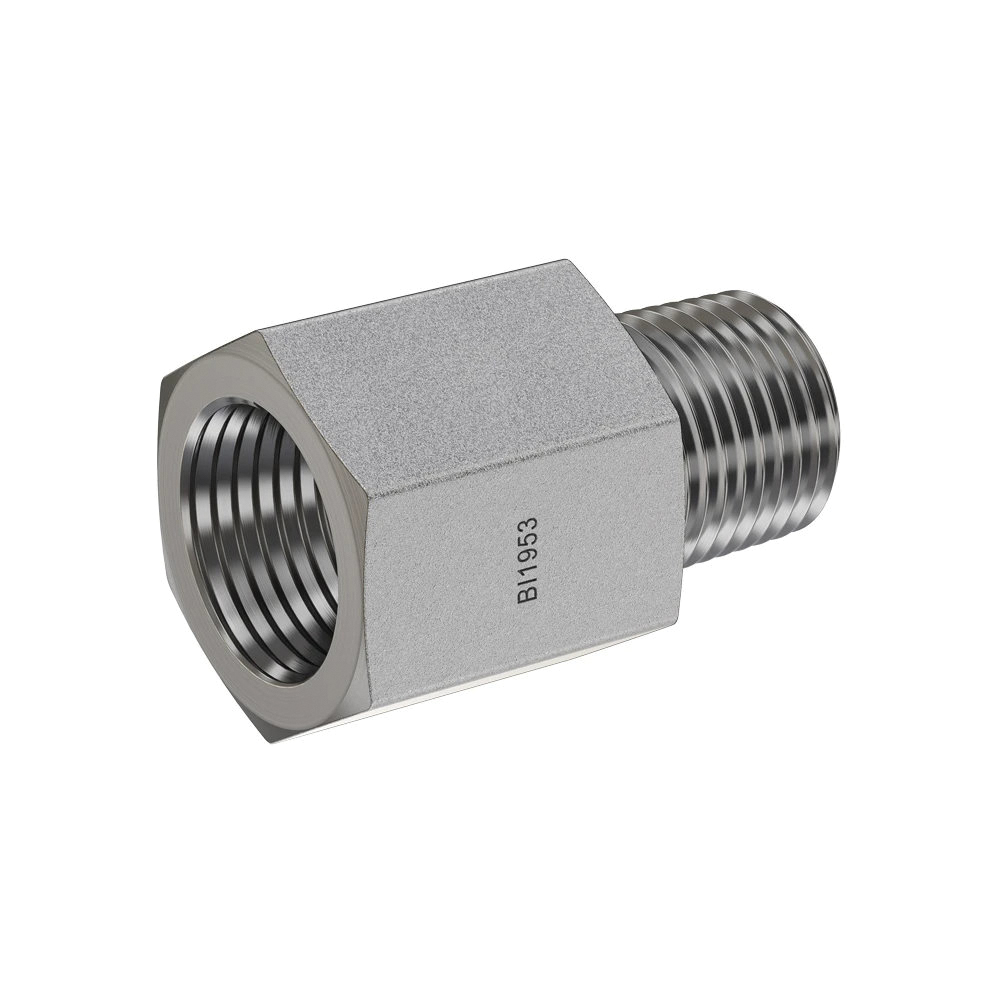

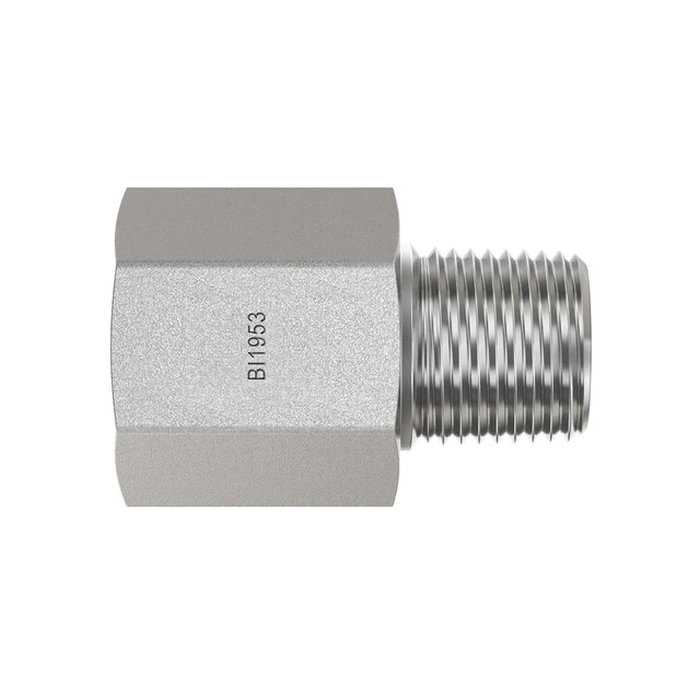

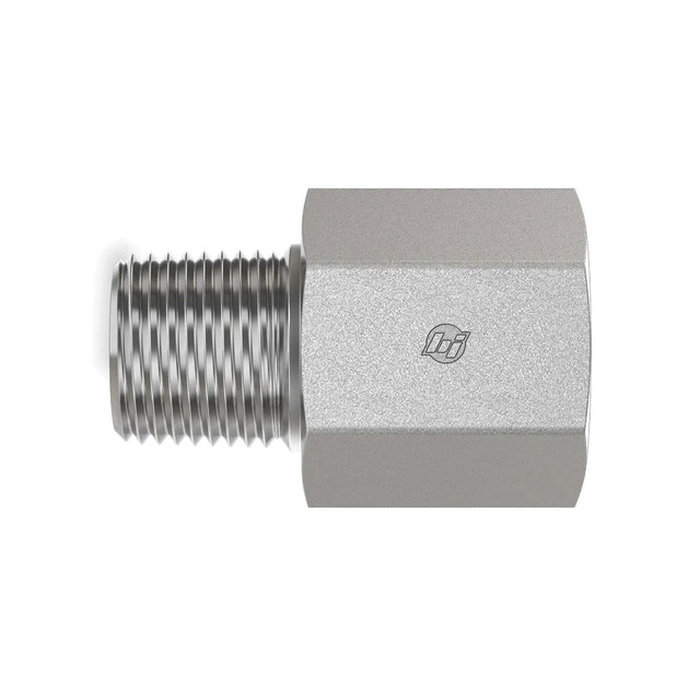

BRENNAN 5405-08-08 Straight Expander, 1/2 in Male SAE 30 deg NPTF x 1/2 in Female SAE NPTF, Steel
NASHVILLE, TN
Available at All Branches
BRENNAN Straight Expander, 5405 Series, Expander Fitting, 1/2 in Connection Size 1, Connection Type 1: Male SAE 30 deg NPTF, 1/2 in Connection Size 2, Connection Type 2: Female SAE NPTF, MNPT|FNPT Connection, Steel, Material Construction: 12L14/C1045 Steel, Finish: Trivalent Zinc-Plated, 1/2-14 Thread, 1-1/8 in Hex, Dimension Standards: SAE J476, 1.87 in L, 5000 psi Maximum Operating Pressure, -65 to 500 deg F Operating Temperature
| Connection Size 1 | : | 1/2 in |
| Connection Size 2 | : | 1/2 in |
| Connection Type 1 | : | Male SAE 30 deg NPTF |
| Connection Type 2 | : | Female SAE NPTF |
| Connection Type | : | MNPT|FNPT |
| Dimension Standards | : | SAE J476 |
| Dimensions | : | 1.87 in L |
| Finish | : | Trivalent Zinc-Plated |
| Fitting Type | : | Expander |
| Hex Size | : | 1-1/8 in |
| Material Construction | : | 12L14/C1045 Steel |
| Material | : | Steel |
| Maximum Operating Pressure | : | 5000 psi |
| Operating Temperature | : | -65 to 500 deg F |
| Series | : | 5405 Series |
| Thread Size | : | 1/2-14 |
