BRENNAN 6801-16-10-NWO-FG HY10MB-16MJ90
  1. pin-int

BRENNAN 6801-16-10-NWO-FG HY10MB-16MJ90

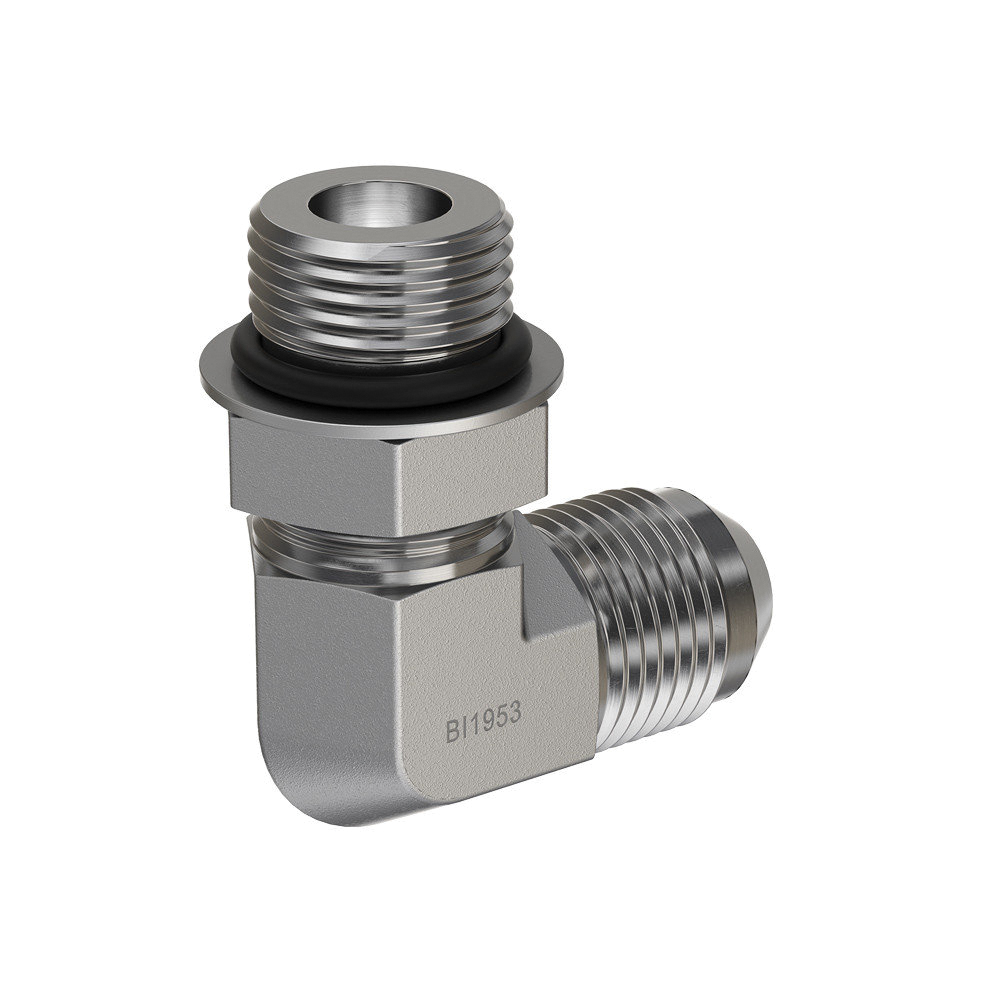

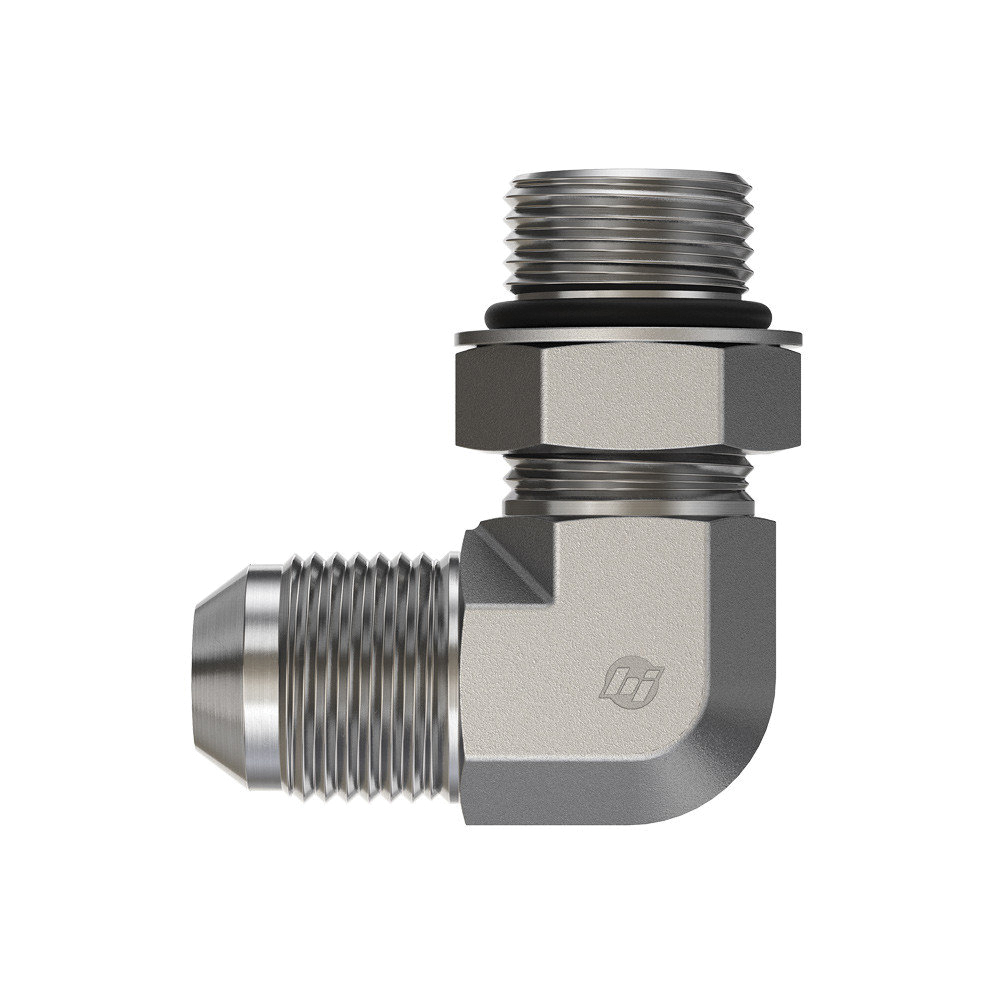

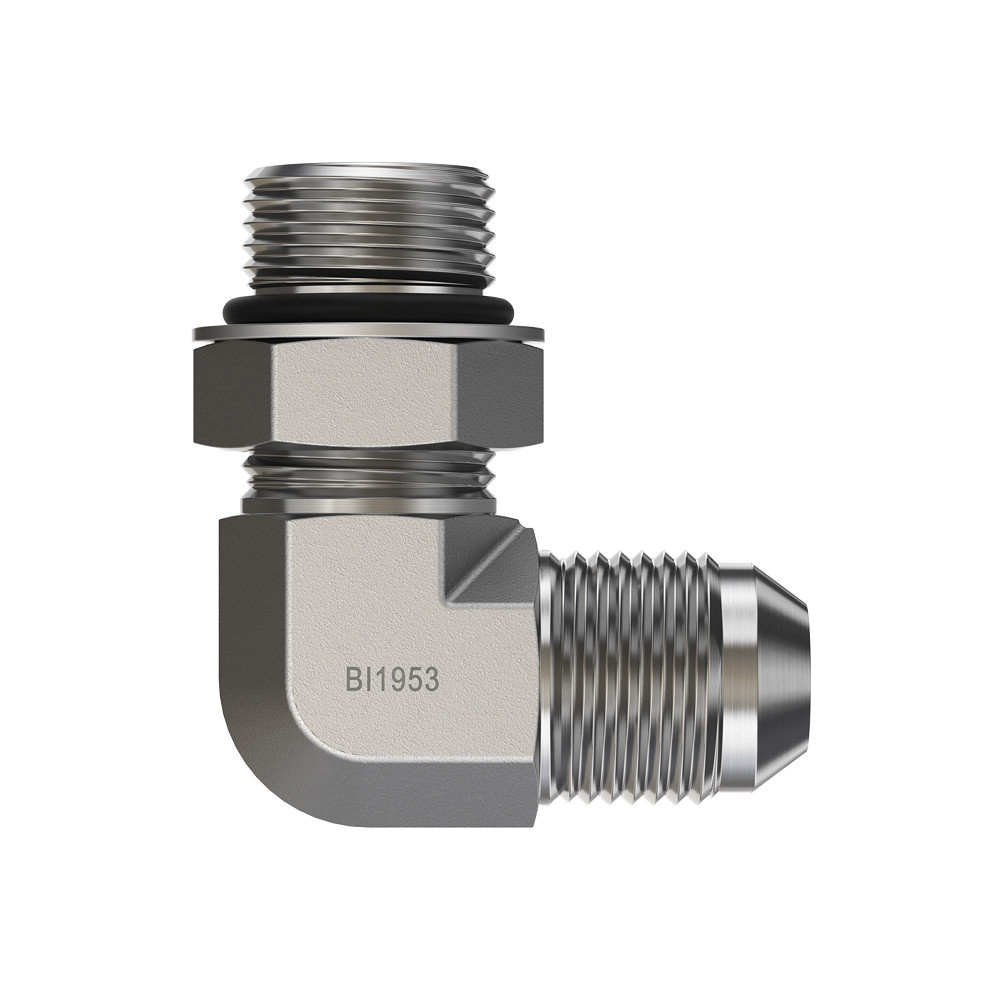

BRENNAN 6801-16-10-NWO-FG 90 deg Elbow, 1 in Male SAE Adjustable ORB x 5/8 in Male SAE 37 deg JIC, Steel

  • Manufacturer: Brennan Industries
  • Brand Name: BRENNAN
  • Part#: HY10MB-16MJ90
  • MPN: 6801-16-10-NWO-FG
  • Qty. Interval: 1
  • loading NASHVILLE, TN
  • loading Available at All Branches
  • UOM: EA

BRENNAN 90 deg Elbow, 6801-NWO-FG Series, 90 deg Elbow Fitting, 1 in Connection Size 1, Connection Type 1: Male SAE Adjustable ORB, 5/8 in Connection Size 2, Connection Type 2: Male SAE 37 deg JIC, Male SAE ORB|Male JIC Connection, Steel, Material Construction: AISI C1045 Steel, Finish: Trivalent Zinc-Plated, 7/8-14 x 1-5/16-12 Thread, 1 in Hex, Dimension Standards: SAE J1926, SAE J514, 4000 psi Maximum Operating Pressure, -40 to 250 deg F Operating Temperature

Connection Size 1      :      1 in
Connection Size 2      :      5/8 in
Connection Type 1      :      Male SAE Adjustable ORB
Connection Type 2      :      Male SAE 37 deg JIC
Connection Type      :      Male SAE ORB|Male JIC
Dimension Standards      :      SAE J1926, SAE J514
Finish      :      Trivalent Zinc-Plated
Fitting Type      :      90 deg Elbow
Hex Size      :      1 in
Material Construction      :      AISI C1045 Steel
Material      :      Steel
Maximum Operating Pressure      :      4000 psi
Operating Temperature      :      -40 to 250 deg F
Series      :      6801-NWO-FG Series
Thread Size      :      7/8-14 x 1-5/16-12
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/BRENNAN_5406_24_08_SS_Catalog.pdf
  • pdfFull Engineering Drawing https://assets.unilogcorp.com/267/ITEM/DOC/BRENNAN_6801_16_10_NWO_FG_Full_Engineering_Drawing.pdf
