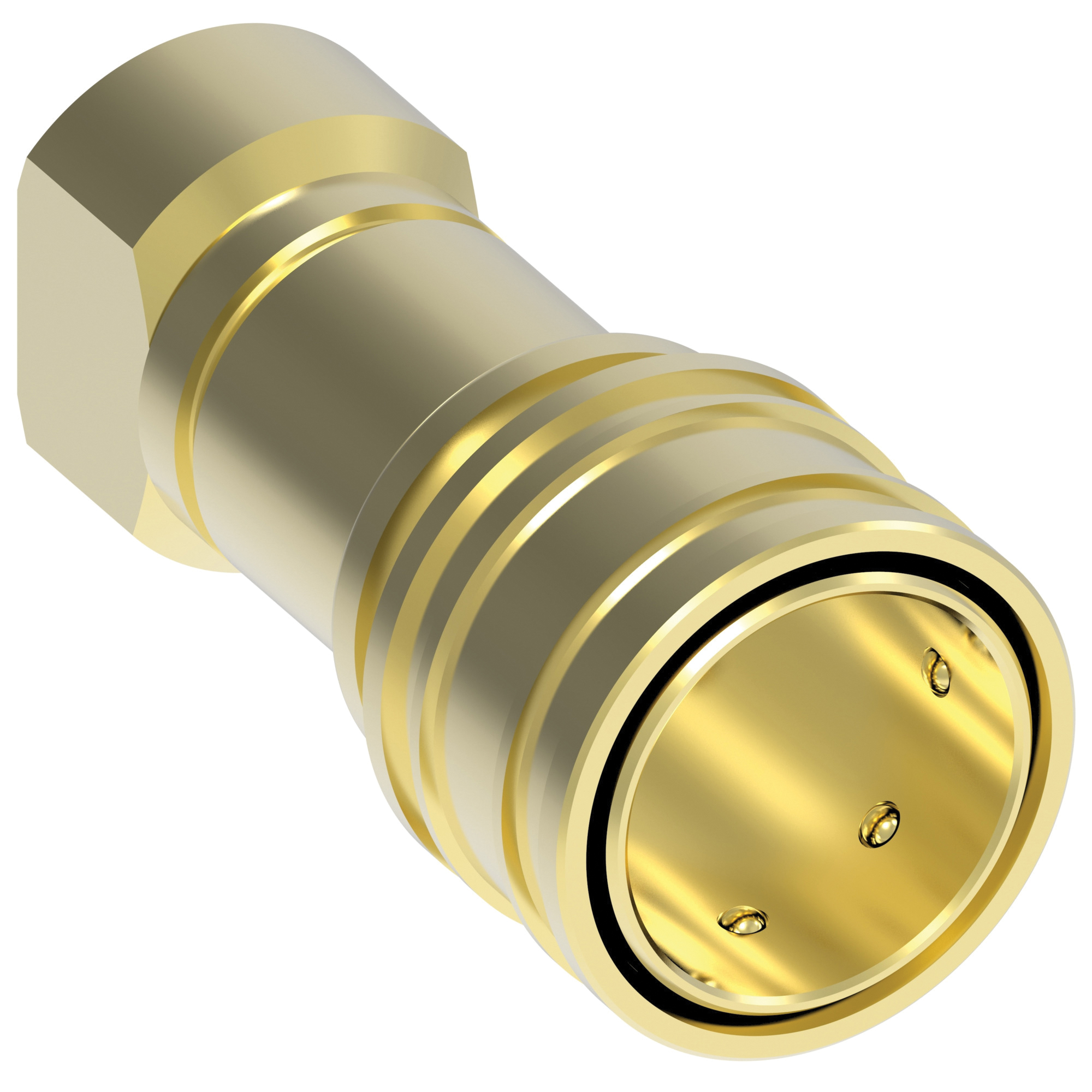

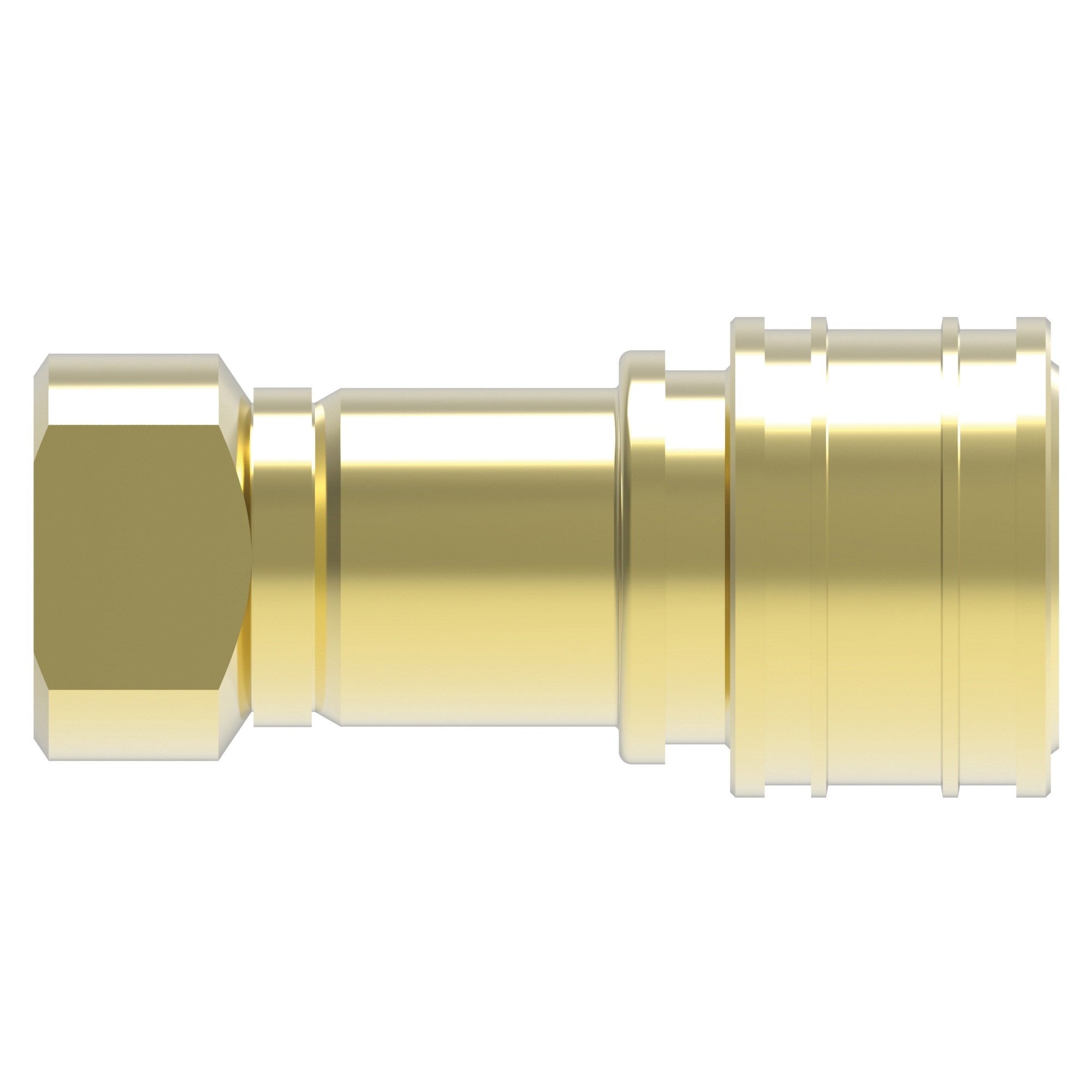

Danfoss Hansen® Gas-Mate Series 100012E Straight Socket Coupling, 1 in Female Quick Disconnect x 1 in FNPTF, Brass
NASHVILLE, TN
Available at All Branches
Danfoss' Gas-Mate™ Series quick disconnect couplings are a one-way shut-off safety couplings designed for the connection of gas fired devices or applications.
Danfoss Hansen® Straight Socket Coupling, Gas-Mate Series, Coupling Fitting, 1 in Connection Size 1, Connection Type 1: Female Quick Disconnect, 1 in Connection Size 2, Connection Type 2: FNPTF, Female Quick-Disconnect|FNPT Connection, Brass, Material Construction: Brass, 1-11-1/2 Thread, 1-1/2 in Hex, 2.13 in Dia x 3.94 in L, 0.5 psi Maximum Operating Pressure, -40 to 200 deg F Operating Temperature
| Connection Size 1 | : | 1 in |
| Connection Size 2 | : | 1 in |
| Connection Type 1 | : | Female Quick Disconnect |
| Connection Type 2 | : | FNPTF |
| Connection Type | : | Female Quick-Disconnect|FNPT |
| Dimensions | : | 2.13 in Dia x 3.94 in L |
| Fitting Type | : | Coupling |
| Hex Size | : | 1-1/2 in |
| Material Construction | : | Brass |
| Material | : | Brass |
| Maximum Operating Pressure | : | 0.5 psi |
| Operating Temperature | : | -40 to 200 deg F |
| Series | : | Gas-Mate Series |
| Thread Size | : | 1-11-1/2 |
