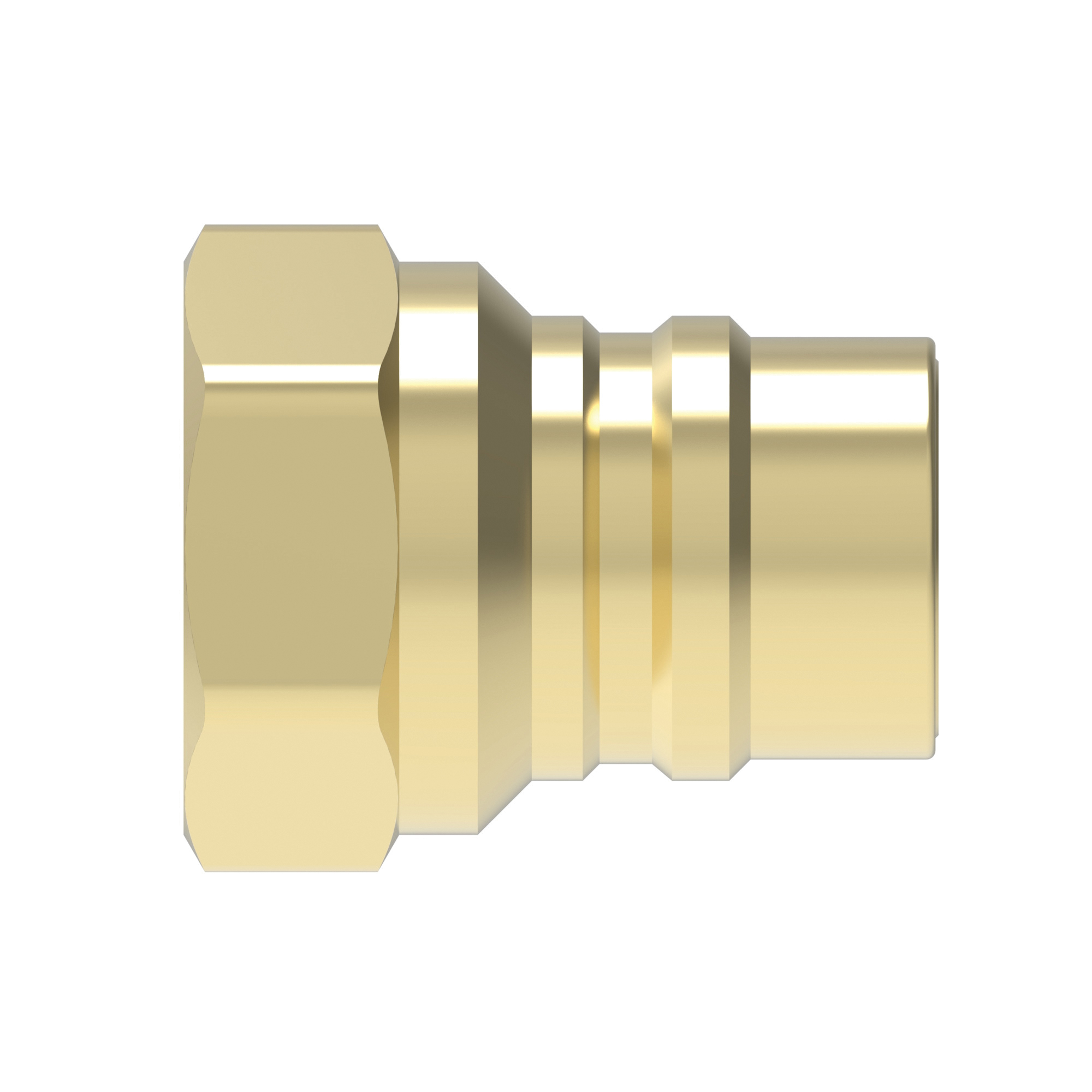

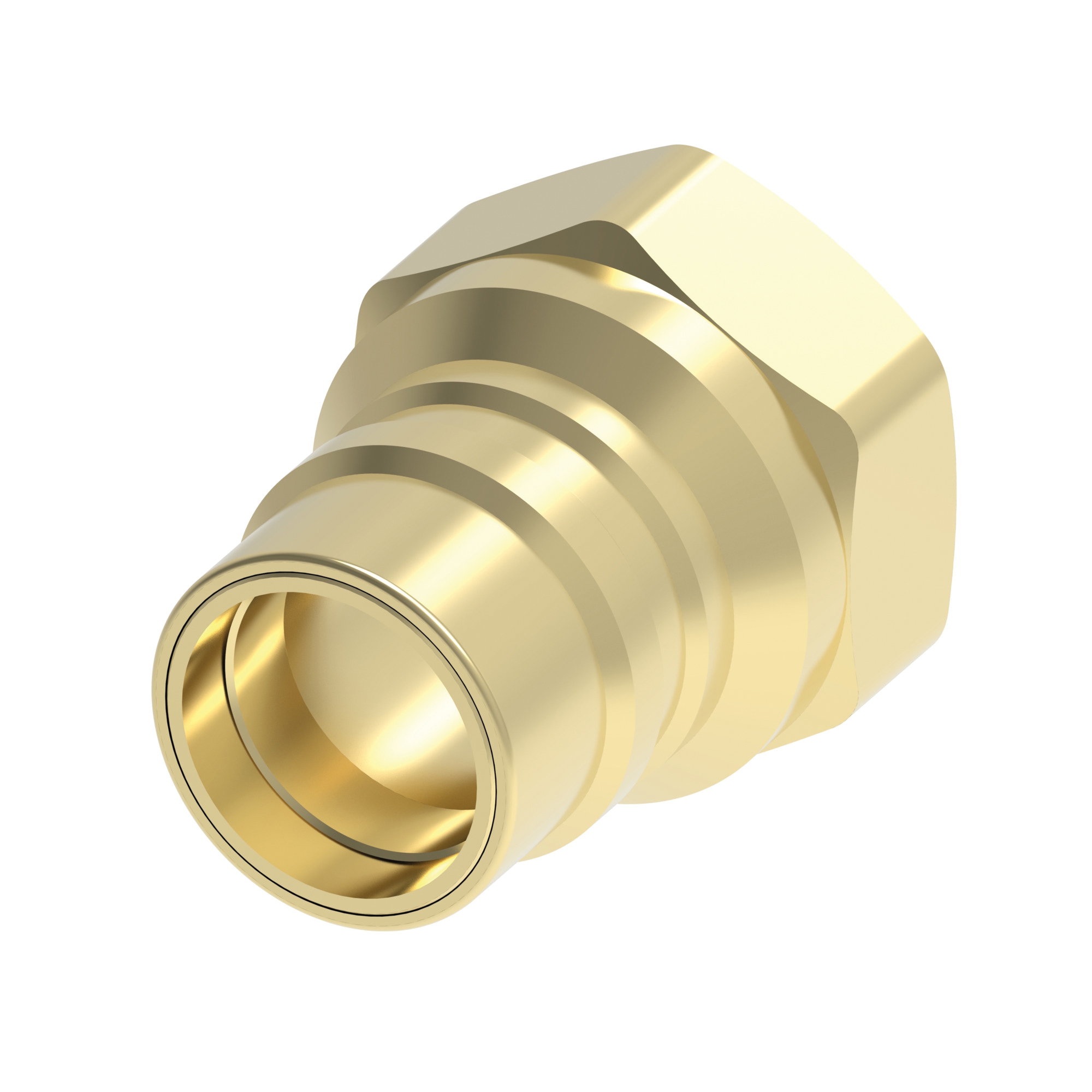

Danfoss Hansen® Gas-Mate Series 100510 Straight Plug Coupling, 3/4 in Male Quick Disconnect x 3/4 in FNPTF, Brass
NASHVILLE, TN
Available at All Branches
Danfoss' Gas-Mate™ Series quick disconnect couplings are a one-way shut-off safety couplings designed for the connection of gas fired devices or applications.
Danfoss Hansen® Straight Plug Coupling, Gas-Mate Series, Coupling Fitting, 3/4 in Connection Size 1, Connection Type 1: Male Quick Disconnect, 3/4 in Connection Size 2, Connection Type 2: FNPTF, Male Quick-Disconnect|FNPT Connection, Brass, Material Construction: Brass, 3/4-14 Thread, 1.31 in Hex, 1.51 in Dia x 2.06 in L, 1 psi Maximum Operating Pressure, -40 to 200 deg F Operating Temperature, Additional Information: NBR Seal
| Additional Information | : | NBR Seal |
| Connection Size 1 | : | 3/4 in |
| Connection Size 2 | : | 3/4 in |
| Connection Type 1 | : | Male Quick Disconnect |
| Connection Type 2 | : | FNPTF |
| Connection Type | : | Male Quick-Disconnect|FNPT |
| Dimensions | : | 1.51 in Dia x 2.06 in L |
| Fitting Type | : | Coupling |
| Hex Size | : | 1.31 in |
| Material Construction | : | Brass |
| Material | : | Brass |
| Maximum Operating Pressure | : | 1 psi |
| Operating Temperature | : | -40 to 200 deg F |
| Series | : | Gas-Mate Series |
| Thread Size | : | 3/4-14 |
