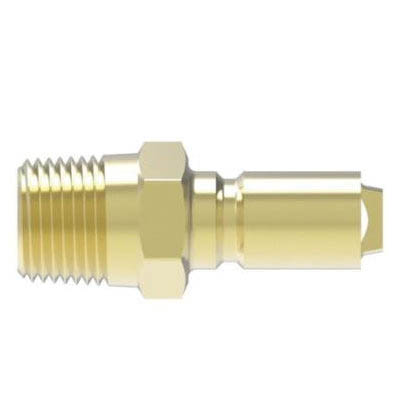

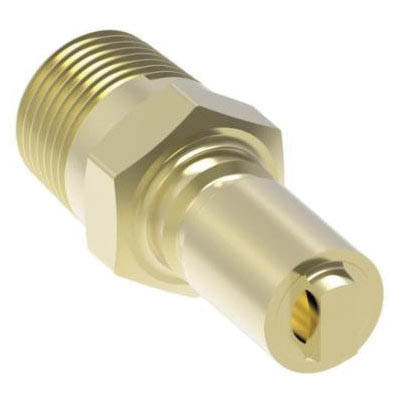

Danfoss Hansen® 180 Series 185E Male Half Coupling, 1/8 in Male Quick Disconnect x 1/8 in Male NPTF, Brass
NASHVILLE, TN
Available at All Branches
Danfoss' 180/280 series miniature ball lock quick disconnect couplings are designed for use with compressed air, gases and liquids.
Danfoss Hansen® Male Half Coupling, 180 Series, Male Half Coupling Fitting, 1/8 in Connection Size 1, Connection Type 1: Male Quick Disconnect, 1/8 in Connection Size 2, Connection Type 2: Male NPTF, Male Quick-Disconnect|MNPT Connection, Brass, Material Construction: Brass, Finish: Nickel-Plated, 0.44 in Hex, 1/8-27 Thread, For Use With: Compressed Air, Gases and Liquids, 1.16 in L x 0.51 in W x 0.51 in H, 700 psi Maximum Operating Pressure, -40 to 250 deg F Operating Temperature, Additional Information: 2.5 scfm Flow Rate, Nitrile Seal
| Additional Information | : | 2.5 scfm Flow Rate, Nitrile Seal |
| Connection Size 1 | : | 1/8 in |
| Connection Size 2 | : | 1/8 in |
| Connection Type 1 | : | Male Quick Disconnect |
| Connection Type 2 | : | Male NPTF |
| Connection Type | : | Male Quick-Disconnect|MNPT |
| Dimensions | : | 1.16 in L x 0.51 in W x 0.51 in H |
| Finish | : | Nickel-Plated |
| Fitting Type | : | Male Half Coupling |
| For Use With | : | Compressed Air, Gases and Liquids |
| Hex Size | : | 0.44 in |
| Material Construction | : | Brass |
| Material | : | Brass |
| Maximum Operating Pressure | : | 700 psi |
| Operating Temperature | : | -40 to 250 deg F |
| Series | : | 180 Series |
| Thread Size | : | 1/8-27 |
