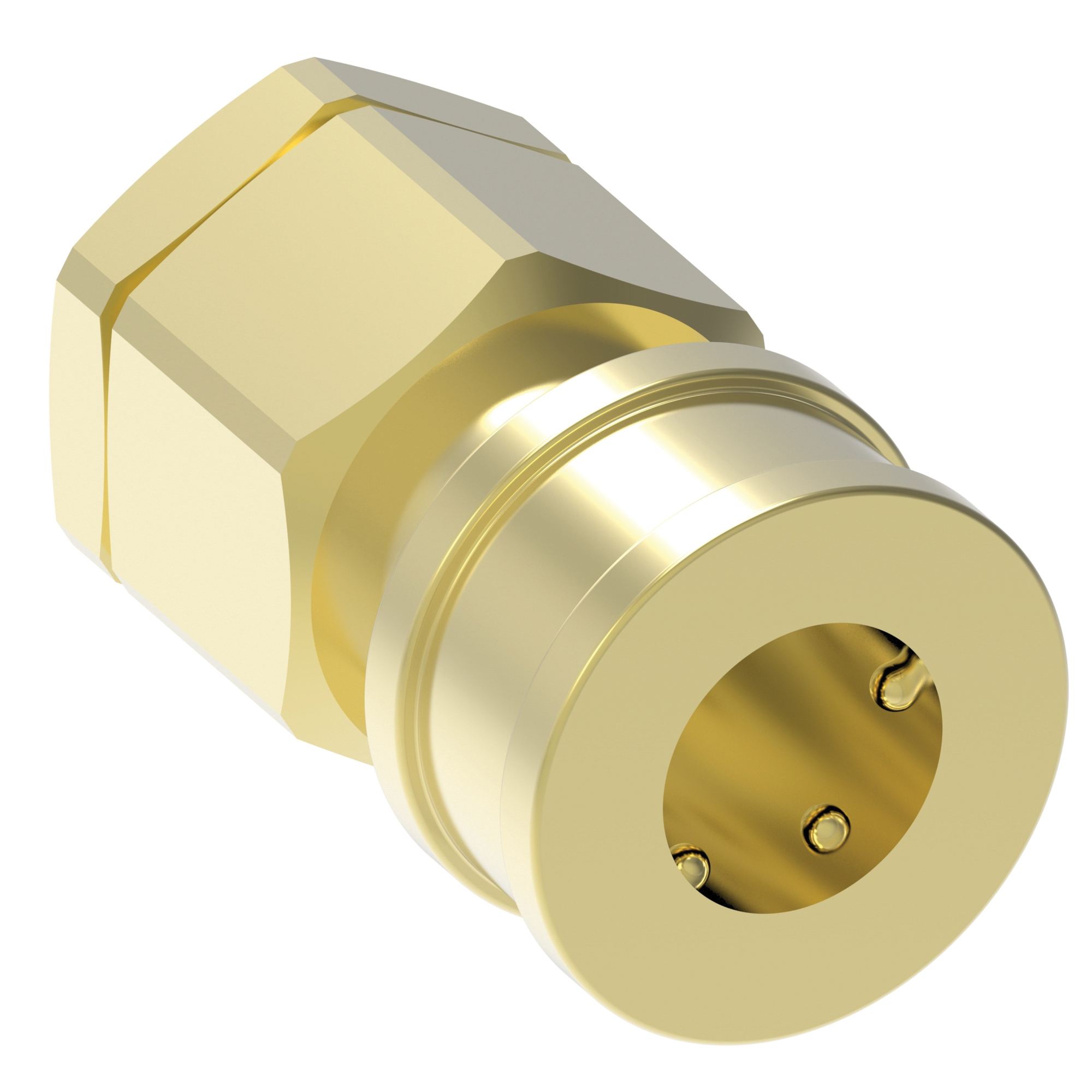

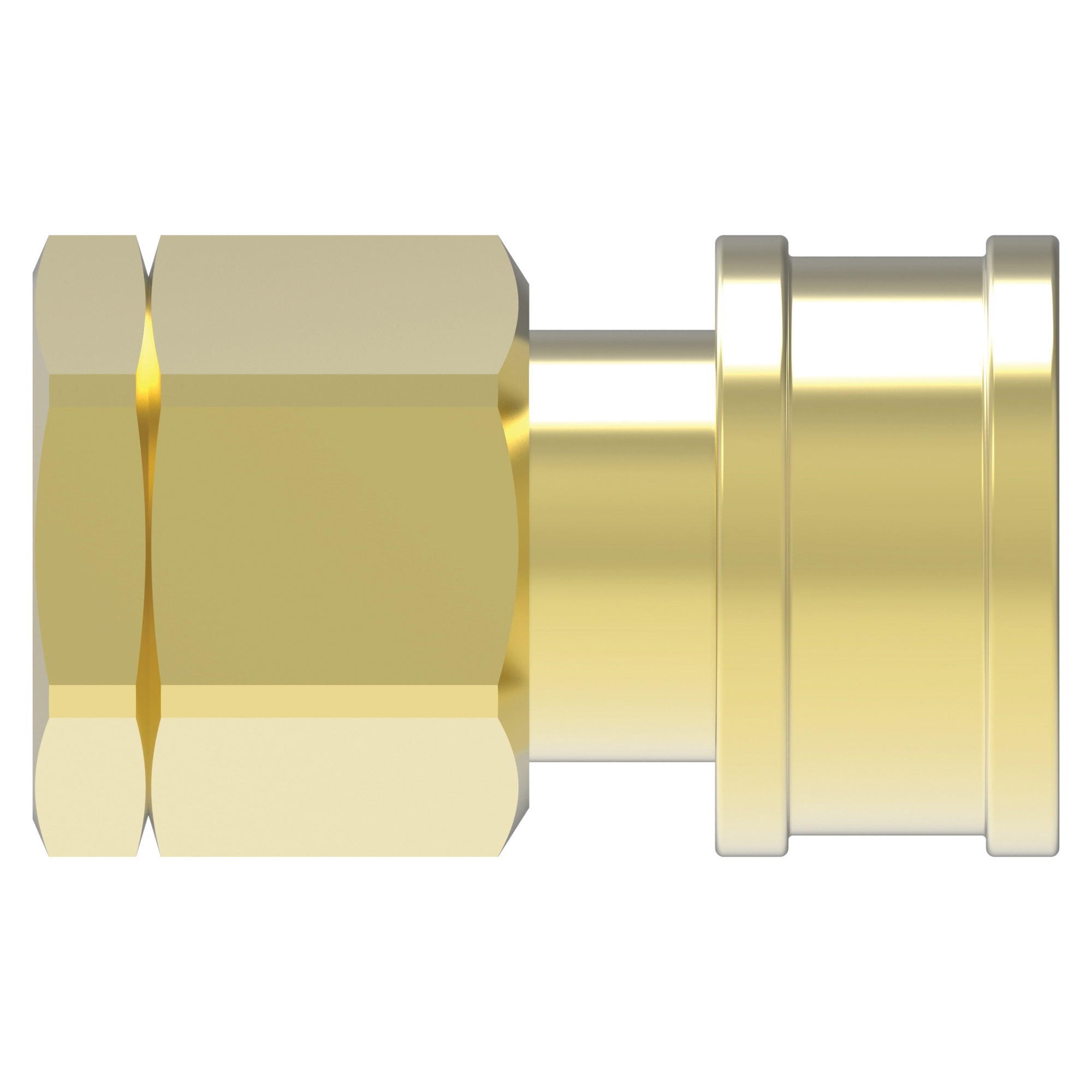

Danfoss Hansen® HK1-8 Series B2H16SL Straight Socket Coupling, 1/4 in Female Quick Disconnect x 1/4 in FNPTF, Brass
NASHVILLE, TN
Available at All Branches
Danfoss Hansen HK brass is a general purpose industrial interchange coupling available in valved or non-valved designs, offered in brass for excelllent corrosion resistance in rugged applications where stainless steel is unacceptable. The HK Series features a ball latch mechanism with automatic self-sealing poppet valves.
Danfoss Hansen® Straight Socket Coupling, HK1-8 Series, Coupling Fitting, 1/4 in Connection Size 1, Connection Type 1: Female Quick Disconnect, 1/4 in Connection Size 2, Connection Type 2: FNPTF, Female Quick-Disconnect|FNPT Connection, Brass, Material Construction: Brass, 1/4-18 Thread, 3/4 in Hex, 1.14 in Dia x 2.26 in L, 2700 psi Maximum Operating Pressure, -40 to 250 deg F Operating Temperature, Additional Information: NBR Seal, 3 gpm Flow Rate, Sleeve Lock
| Additional Information | : | NBR Seal, 3 gpm Flow Rate, Sleeve Lock |
| Connection Size 1 | : | 1/4 in |
| Connection Size 2 | : | 1/4 in |
| Connection Type 1 | : | Female Quick Disconnect |
| Connection Type 2 | : | FNPTF |
| Connection Type | : | Female Quick-Disconnect|FNPT |
| Dimension Standards | : | ISO 7241-1B |
| Dimensions | : | 1.14 in Dia x 2.26 in L |
| Fitting Type | : | Coupling |
| Hex Size | : | 3/4 in |
| Material Construction | : | Brass |
| Material | : | Brass |
| Maximum Operating Pressure | : | 2700 psi |
| Operating Temperature | : | -40 to 250 deg F |
| Series | : | HK1-8 Series |
| Thread Size | : | 1/4-18 |
