DIXON 2AGF2-PV QD2AGF2-PV
  1. pin-int

DIXON 2AGF2-PV QD2AGF2-PV

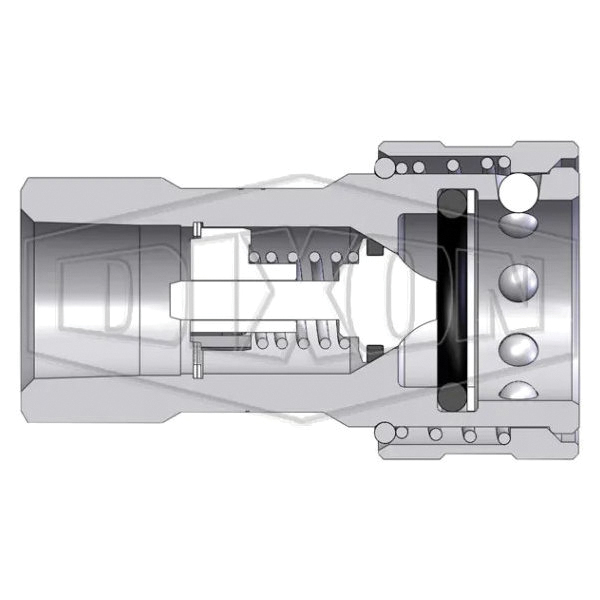

DIXON AG Series 2AGF2-PV Poppet Valve Coupler, 1/4 in Quick Disconnect x 1/4 in Female NPTF, Steel

  • Manufacturer: Dixon Valve & Coupling Company, LLC
  • Brand Name: DIXON
  • Part#: QD2AGF2-PV
  • MPN: 2AGF2-PV
  • Qty. Interval: 1
  • loading NASHVILLE, TN
  • loading Available at All Branches
  • UOM: EA

DIXON Poppet Valve Coupler, AG Series, Coupler Fitting, 1/4 in Connection Size 1, Connection Type 1: Quick Disconnect, 1/4 in Connection Size 2, Connection Type 2: Female NPTF, Quick-Disconnect|FNPT Connection, Steel, Material Construction: Steel, Finish: Trivalent Chrome-Plated, 1/4-18 Thread, 7/8 in Hex, 1.12 in OD x 2.06 in L, 4000 psi Maximum Operating Pressure, -40 to 250 deg F Operating Temperature, Additional Information: 4 gpm Flow Rate, 21000 psi Burst Pressure, Nitrile Rubber Seal

Additional Information      :      4 gpm Flow Rate, 21000 psi Burst Pressure, Nitrile Rubber Seal
Connection Size 1      :      1/4 in
Connection Size 2      :      1/4 in
Connection Type 1      :      Quick Disconnect
Connection Type 2      :      Female NPTF
Connection Type      :      Quick-Disconnect|FNPT
Dimensions      :      1.12 in OD x 2.06 in L
Finish      :      Trivalent Chrome-Plated
Fitting Type      :      Coupler
Hex Size      :      7/8 in
Material Construction      :      Steel
Material      :      Steel
Maximum Operating Pressure      :      4000 psi
Operating Temperature      :      -40 to 250 deg F
Series      :      AG Series
Thread Size      :      1/4-18
  • Machined components are manufactured using solid bar stock
  • Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life
  • Steel componentry is plated using ROHS Compliant Trivalent Chrome
  • Steel coupler sleeves are hardened to resist deformation and maximize service life
  • Nitrile (Nitrile Rubber) seals are standard
  • Couplers have a PTFE Anti-Extrusion ring
  • Poppet valve seals are crimped in place to maintain integrity during excessive flow conditions and pressurized connection
  • Ball valve and poppet valve options available
