DIXON 4KOF5 QD4KOF5

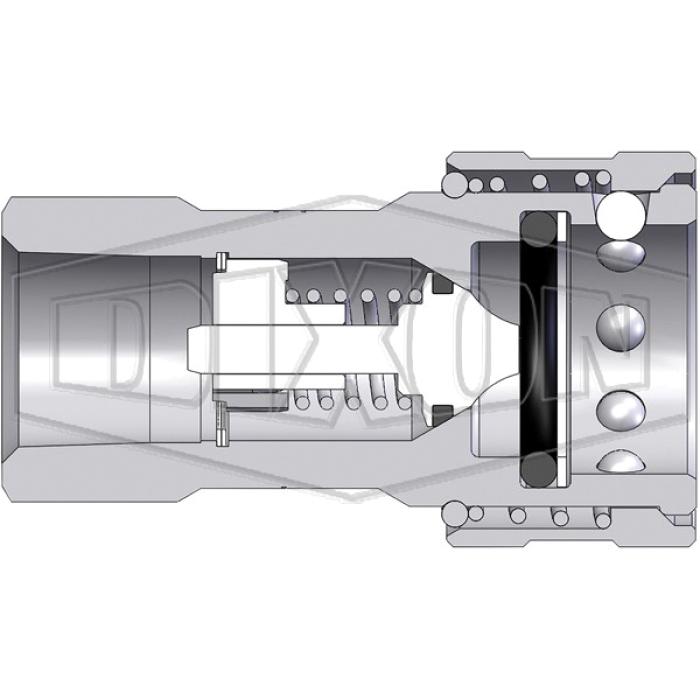

DIXON K Series 4KOF5 ISO-A Interchange Coupler, 1/2 in Quick Disconnect x 1/2 in Female ORB, Steel

  • Manufacturer: Dixon Valve & Coupling Company, LLC
  • Brand Name: DIXON
  • Part#: QD4KOF5
  • MPN: 4KOF5
  • Qty. Interval: 1
  • loading NASHVILLE, TN
  • loading Available at All Branches
  • UOM: EA

DIXON ISO-A Interchange Coupler, Series: K, Fitting Type: Coupling, Connection Size 1: 1/2 in, Connection Type 1: Quick Disconnect, Connection Size 2: 1/2 in, Connection Type 2: Female ORB, Material Construction: Steel, Chrome Trivalent-Plated, 7/8-14 Thread, 1-3/32 in Hex, 2.66 in L, Maximum Operating Pressure: 4000 psi, -40 to 250 deg F Operating

Connection Size 1      :      1/2 in
Connection Size 2      :      1/2 in
Connection Type 1      :      Quick Disconnect
Connection Type 2      :      Female ORB
Connection Type      :      Quick-Disconnect|Female ORB
Dimensions      :      2.66 in L
Finish      :      Chrome Trivalent-Plated
Fitting Type      :      Coupling
Hex Size      :      1-3/32 in
Material Construction      :      Steel
Material      :      Steel
Maximum Operating Pressure      :      4000 psi
Operating Temperature      :      -40 to 250 deg F
Series      :      K
Thread Size      :      7/8-14
  • Poppet style shut-off valves
  • Machined components are manufactured using solid bar stock
  • Stainless steel balls, retaining rings and spring maximize corrosion-resistant and extend service life
  • Steel componentry is plated using RoHS compliant trivalent chrome
  • Steel coupler sleeves are hardened to resist deformation and maximize service life
  • Nitrile (Buna-N) seals are standard
  • Couplers have a PTFE anti-extrusion ring
  • Valve seals are crimped in place to maintain integrity during excessive flow conditions and pressurized connection
  • Interchangeable to ISO7241 Series A
  • Parker® 6600 Series, Aeroquip®/Eaton FD56 (5600)
  • Faster ANV, Hansen HA 15000, Safeway S56 Series
