DIXON 5HTOF6 QD5HTOF6

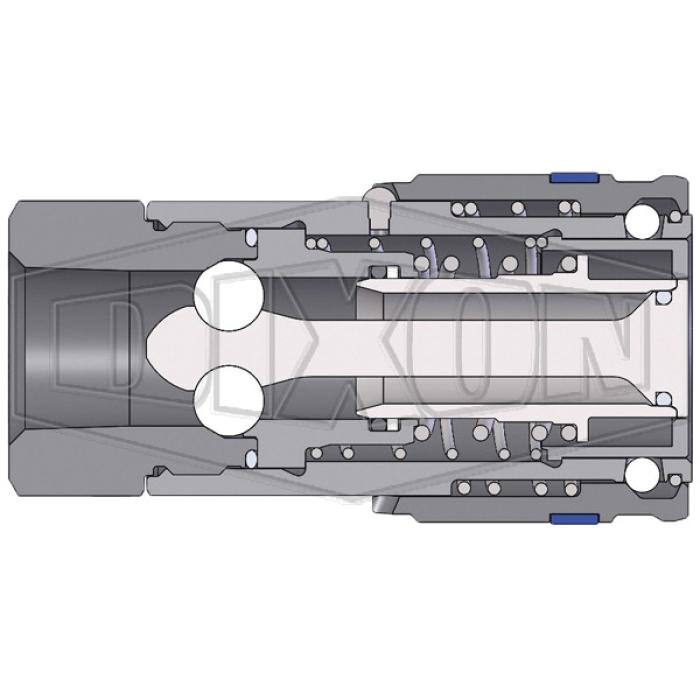

DIXON HT Series 5HTOF6 Flushface Interchange Coupler, 5/8 in Quick Disconnect x 1-1/16 in Female ORB, Steel

  • Manufacturer: Dixon Valve & Coupling Company, LLC
  • Brand Name: DIXON
  • Part#: QD5HTOF6
  • MPN: 5HTOF6
  • Qty. Interval: 1
  • loading NASHVILLE, TN
  • loading Available at All Branches
  • UOM: EA

DIXON Flushface Interchange Coupler, Series: HT, Fitting Type: Coupling, Connection Size 1: 5/8 in, Connection Type 1: Quick Disconnect, Connection Size 2: 1-1/16 in, Connection Type 2: Female ORB, Connection Type: Quick-Disconnect|Female ORB, Steel, Material Construction: Steel, Chrome Trivalent-Plated, 1-1/16-12 Thread, 1-1/2 in Hex, 3.32 in L, Maximum Operating Pressure: 5000 psi, -40 to 250 deg F Operating

Connection Size 1      :      5/8 in
Connection Size 2      :      1-1/16 in
Connection Type 1      :      Quick Disconnect
Connection Type 2      :      Female ORB
Connection Type      :      Quick-Disconnect|Female ORB
Dimensions      :      3.32 in L
Finish      :      Chrome Trivalent-Plated
Fitting Type      :      Coupling
Hex Size      :      1-1/2 in
Material Construction      :      Steel
Material      :      Steel
Maximum Operating Pressure      :      5000 psi
Operating Temperature      :      -40 to 250 deg F
Series      :      HT Series
Thread Size      :      1-1/16-12
  • High-flow performance, compact profile
  • Easily re-buildable
  • DORS (dual opposing retention spheres) retention system prevents valve stem ejection during surge flow and pressure spike conditions
  • Machined components are manufactured using solid bar stock
  • Stainless steel balls, retaining rings and spring maximize corrosion-resistant and extend service life
  • Steel componentry is plated using RoHS compliant trivalent chrome
  • Steel coupler sleeves are hardened to resist deformation and maximize service life
  • Couplers have polyurethane valve stem O-ring, with a temperature range of -65 to 212 deg F
  • Ancillary coupler seals are nitrile (Buna-N), with a temperature range of -40 to 250 deg F
  • PTFE or TPC-ET anti-extrusion ring protects main coupling valve seal from dynamic impulse pressure damage
  • Interchangeable to ISO16028
  • Conforms to ISO16028 interchange standard interchangeable with Eaton/Hansen FF, Parker FEM, Snap-Tite 74, Faster FFH/2FFN/2FFI, Stucchi A/FIRG and Holmbury HQ/A/FIMC
