DIXON D2F1 QDD2F1

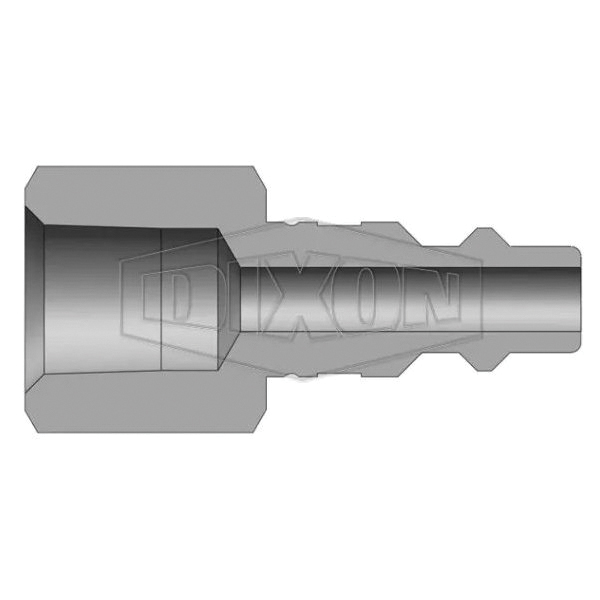

DIXON DF Series D2F1 Pneumatic Interchange Plug, 1/4 in Quick Disconnect x 1/8 in Female NPTF, Steel

  • Manufacturer: Dixon Valve & Coupling Company, LLC
  • Brand Name: DIXON
  • Part#: QDD2F1
  • MPN: D2F1
  • Qty. Interval: 1
  • loading NASHVILLE, TN
  • loading Available at All Branches
  • UOM: EA

DIXON Pneumatic Interchange Plug, DF Series, Plug Fitting, 1/4 in Connection Size 1, Connection Type 1: Quick Disconnect, 1/8 in Connection Size 2, Connection Type 2: Female NPTF, Quick-Disconnect|FNPT Connection, Steel, Material Construction: Steel, Finish: Trivalent Chrome-Plated, 9/16 in Hex, 1/8-27 Thread, 0.65 in OD x 1.44 in L, 500 psi Maximum Operating Pressure, -40 to 250 deg F Operating Temperature, Additional Information: 27 cfm Flow Rate, 9000 psi Burst Pressure, Nitrile Seal

Additional Information      :      27 cfm Flow Rate, 9000 psi Burst Pressure, Nitrile Seal
Connection Size 1      :      1/4 in
Connection Size 2      :      1/8 in
Connection Type 1      :      Quick Disconnect
Connection Type 2      :      Female NPTF
Connection Type      :      Quick-Disconnect|FNPT
Dimensions      :      0.65 in OD x 1.44 in L
Finish      :      Trivalent Chrome-Plated
Fitting Type      :      Plug
Hex Size      :      9/16 in
Material Construction      :      Steel
Material      :      Steel
Maximum Operating Pressure      :      500 psi
Operating Temperature      :      -40 to 250 deg F
Series      :      DF Series
Thread Size      :      1/8-27
  • Machined components are manufactured using solid bar stock
  • Steel componentry is plated using ROHS Compliant Trivalent Chrome
  • Rated pressure when connected with Brass D-Series Automatic Couplers: 500 PSI (35 bar) Maximum Working and 16,000 PSI (1,100 bar) Burst
  • Rated pressure when connected with Brass F-Series Manual Couplers: 500 PSI (35 bar) Maximum Working and 9,000 PSI (620 bar) Burst
