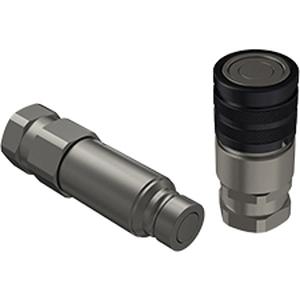

Faster 3FFH08 12SAE M Flat Face Coupling, 1/2 in Male Push-to-Connect x 3/4 in Female SAE ORB, Steel
NASHVILLE, TN
Available at All Branches
Flat face couplings, connectable under residual pressure. Real 35 MPa (5076 psi) max working pressure. ISO 16028 interchange. Zinc nickel plating. It's possible to couple either a 3FFH female half under pressure with a FFH male half or a 3FFH male half under pressure with a FFH female half. 3FFK parts are a more compact version (20 mm shorter body) of 1/2 in 3FFH male halves, offering same technical performances.
Faster Flat Face Coupling, Series: 3FFH Series, Coupling Fitting, 1/2 in Connection Size 1, Male Push-to-Connect Connection Type 1, 3/4 in Connection Size 2, Female SAE ORB Connection Type 2, Push-Fit|Female ORB Connection Type, Steel, Steel Material Construction, 3/4-16 Thread, 1.34 in Hex, 4.56 in L, 35 MPa Maximum Operating Pressure, -25 to 100 deg C Operating, Additional Information: 65 Lpm Flow Rate
| Additional Information | : | 65 Lpm Flow Rate |
| Connection Size 1 | : | 1/2 in |
| Connection Size 2 | : | 3/4 in |
| Connection Type 1 | : | Male Push-to-Connect |
| Connection Type 2 | : | Female SAE ORB |
| Connection Type | : | Push-Fit|Female ORB |
| Dimensions | : | 4.56 in L |
| Fitting Type | : | Coupling |
| Hex Size | : | 1.34 in |
| Material Construction | : | Steel |
| Material | : | Steel |
| Maximum Operating Pressure | : | 35 MPa |
| Operating Temperature | : | -25 to 100 deg C |
| Series | : | 3FFH Series |
| Thread Size | : | 3/4-16 |
Specification Sheet
