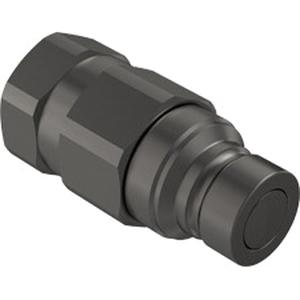

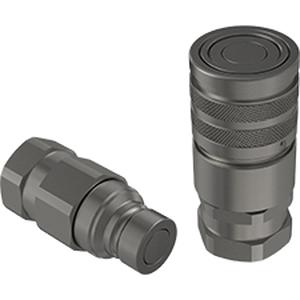

Faster FFH06 12SAE M Flat Face Coupling, 3/8 in Male Push-to-Connect x 3/4 in Female SAE ORB, Steel
NASHVILLE, TN
Available at All Branches
Flat face couplings with real maximum working pressure of 35 MPa and zinc nickel plating. Flat valve shut-off system contributes to prevent contamination and spillage. ISO 16028 interchange. Size 1/8 in has surface treatment in Mate 500 (CrIII) and it is not ISO interchangeable.
Faster Flat Face Coupling, Series: FFH Series, Coupling Fitting, 3/8 in Connection Size 1, Male Push-to-Connect Connection Type 1, 3/4 in Connection Size 2, Female SAE ORB Connection Type 2, Push-Fit|Female ORB Connection Type, Steel, Steel Material Construction, 3/4-16 Thread, 1.18 in Hex, 2.83 in L, 35 MPa Maximum Operating Pressure, -25 to 100 deg C Operating, Additional Information: 50 Lpm Flow Rate
| Additional Information | : | 50 Lpm Flow Rate |
| Connection Size 1 | : | 3/8 in |
| Connection Size 2 | : | 3/4 in |
| Connection Type 1 | : | Male Push-to-Connect |
| Connection Type 2 | : | Female SAE ORB |
| Connection Type | : | Push-Fit|Female ORB |
| Dimensions | : | 2.83 in L |
| Fitting Type | : | Coupling |
| Hex Size | : | 1.18 in |
| Material Construction | : | Steel |
| Material | : | Steel |
| Maximum Operating Pressure | : | 35 MPa |
| Operating Temperature | : | -25 to 100 deg C |
| Series | : | FFH Series |
| Thread Size | : | 3/4-16 |
Specification Sheet
