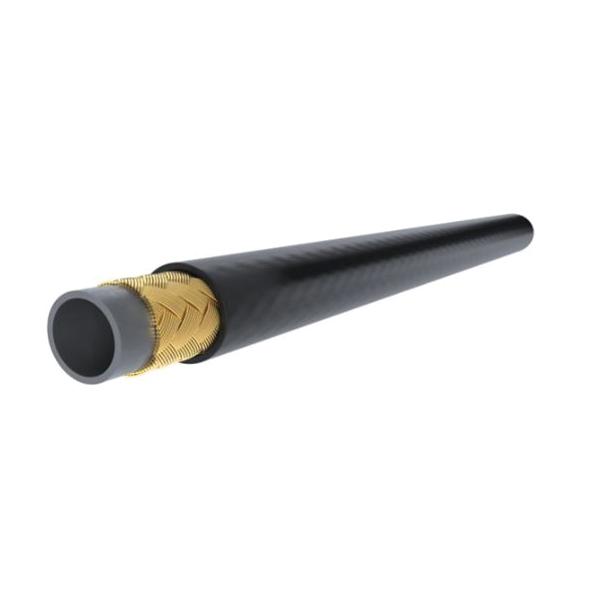

Gates® MXT-XTP Series 46560268 Wire Braided Hose With XtraTuff™ Plus Cover, 0.63 in Nominal, 67 m L, 3625 psi, Black
NASHVILLE, TN
Available at All Branches
MXT-XTP has all the same features as MXT, but with the addition of the XtraTuff™ Plus cover that offers 25X the abrasion resistance of standard covers, as well as enhanced ozone resistance. MXT-XTP was designed to address our customers evolving application challenges. Using materials science and process innovation, combined with a patent-pending construction, Gates® offers a hydraulic solution that is lighter, stronger and more flexible.
Gates® Wire Braided Hose, Series: MXT-XTP Series, Hose Type: Braided Hose, 0.63 in Nominal, 0.63 in Inside Dia, 0.95 in Outside Dia, 67 m Length, Synthetic Rubber Tube, Synthetic Rubber Cover, High Tensile Steel Wire Reinforcement, Black Hose Color, 3.9 in Bend Radius, 3625 psi, Abrasion, Ozone Resistance Properties, 212 deg F Temperature High, -40 deg F Temperature Low, For Use With: MegaCrimp® Couplings, Crimpers, Additional Information: 15400 psi Burst Pressure
| Additional Information | : | 15400 psi Burst Pressure |
| Bend Radius | : | 3.9 in |
| Cover Material | : | Synthetic Rubber |
| For Use With | : | MegaCrimp® Couplings, Crimpers |
| Hose Color | : | Black |
| Hose Type | : | Braided Hose |
| Inside Diameter | : | 0.63 in |
| Length | : | 67 m |
| Nominal Size | : | 0.63 in |
| Outside Diameter | : | 0.95 in |
| Pressure Rating | : | 3625 psi |
| Reinforcement | : | High Tensile Steel Wire |
| Resistance Properties | : | Abrasion, Ozone |
| Series | : | MXT-XTP Series |
| Temperature High | : | 212 deg F |
| Temperature Low | : | -40 deg F |
| Tube Material | : | Synthetic Rubber |
