HERCULES® SEALING PRODUCTS U31-1.37-37B HLPP31201375-375
  1. pin-int

HERCULES® SEALING PRODUCTS U31-1.37-37B HLPP31201375-375

HERCULES® SEALING PRODUCTS U31-1.37-37B U-Seal, Polyurethane, 1-3/8 in ID, 2 in OD, 95A Durometer

  • Manufacturer: Hercules Sealing Products
  • Brand Name: HERCULES® SEALING PRODUCTS
  • Part#: HLPP31201375-375
  • MPN: U31-1.37-37B
  • Qty. Interval: 1
  • loading NASHVILLE, TN
  • loading Available at All Branches

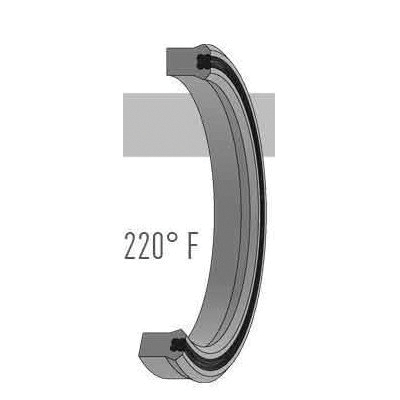

Style 800 U-seals are molded from tough, abrasion-resistant polyurethane. The four lobed expander ring energizes the sealing lips, even at zero pressure, to help prevent 'weeping' when the system is idle.

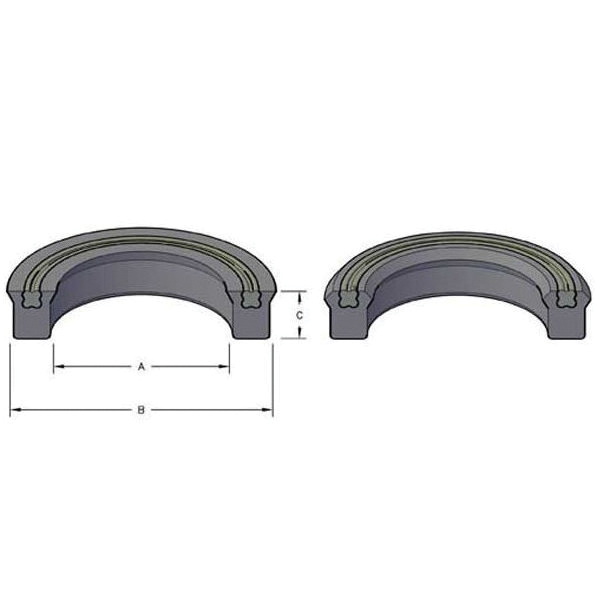

HERCULES® SEALING PRODUCTS U-Seal, 1-3/8 in Inside Diameter, 2 in Outside Diameter, 95A Durometer, -65 to 220 deg F, 1.998 in Piston, Polyurethane, 3/8 in H, Additional Information: Style 800, 5/16 in Cross Section, 0 to 5000 psi Pressure Rating

Additional Information      :      Style 800, 5/16 in Cross Section, 0 to 5000 psi Pressure Rating
Dimensions      :      3/8 in H
Durometer      :      95A
Inside Diameter      :      1-3/8 in
Material      :      Polyurethane
Outside Diameter      :      2 in
Piston Size      :      1.998 in
Temperature Rating      :      -65 to 220 deg F
