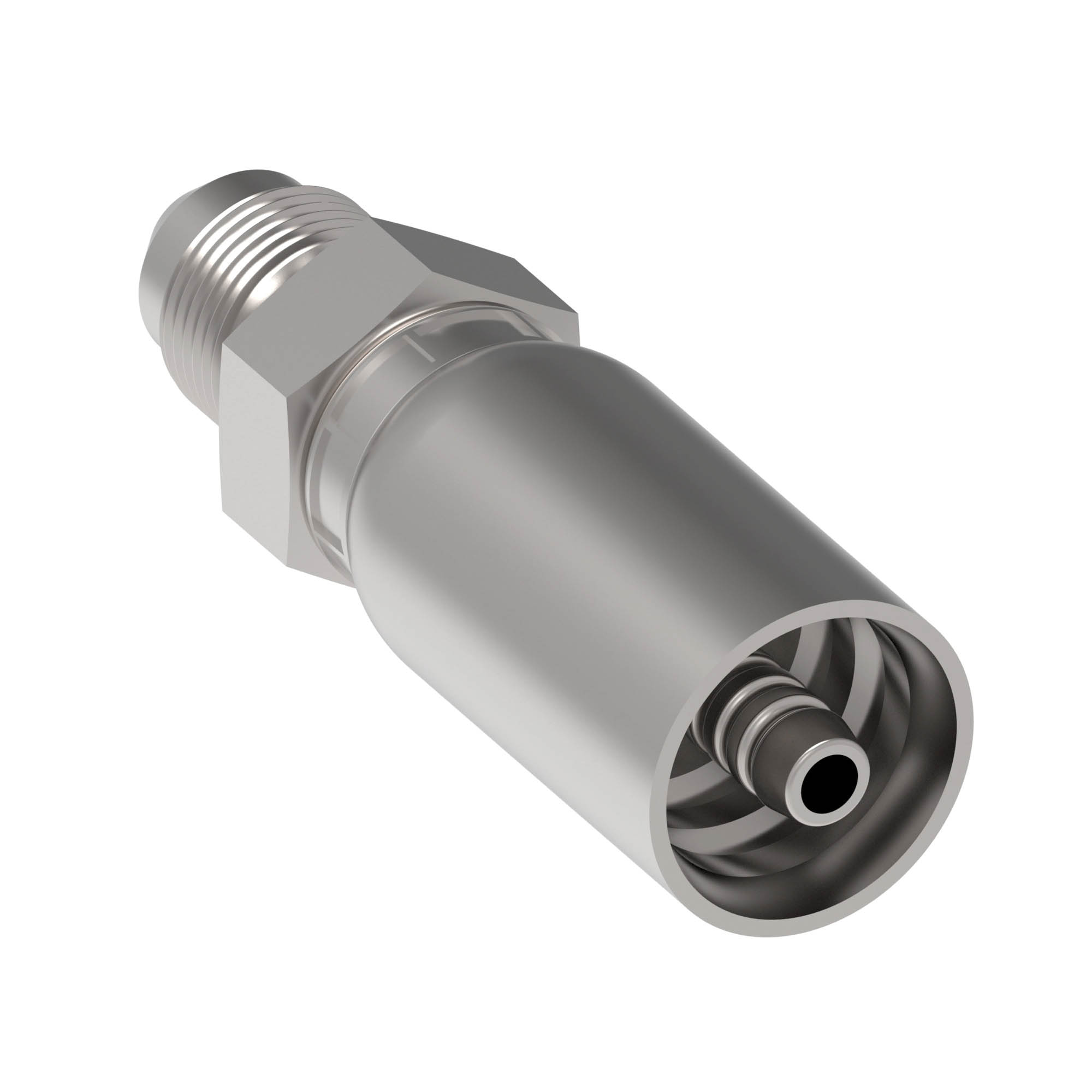

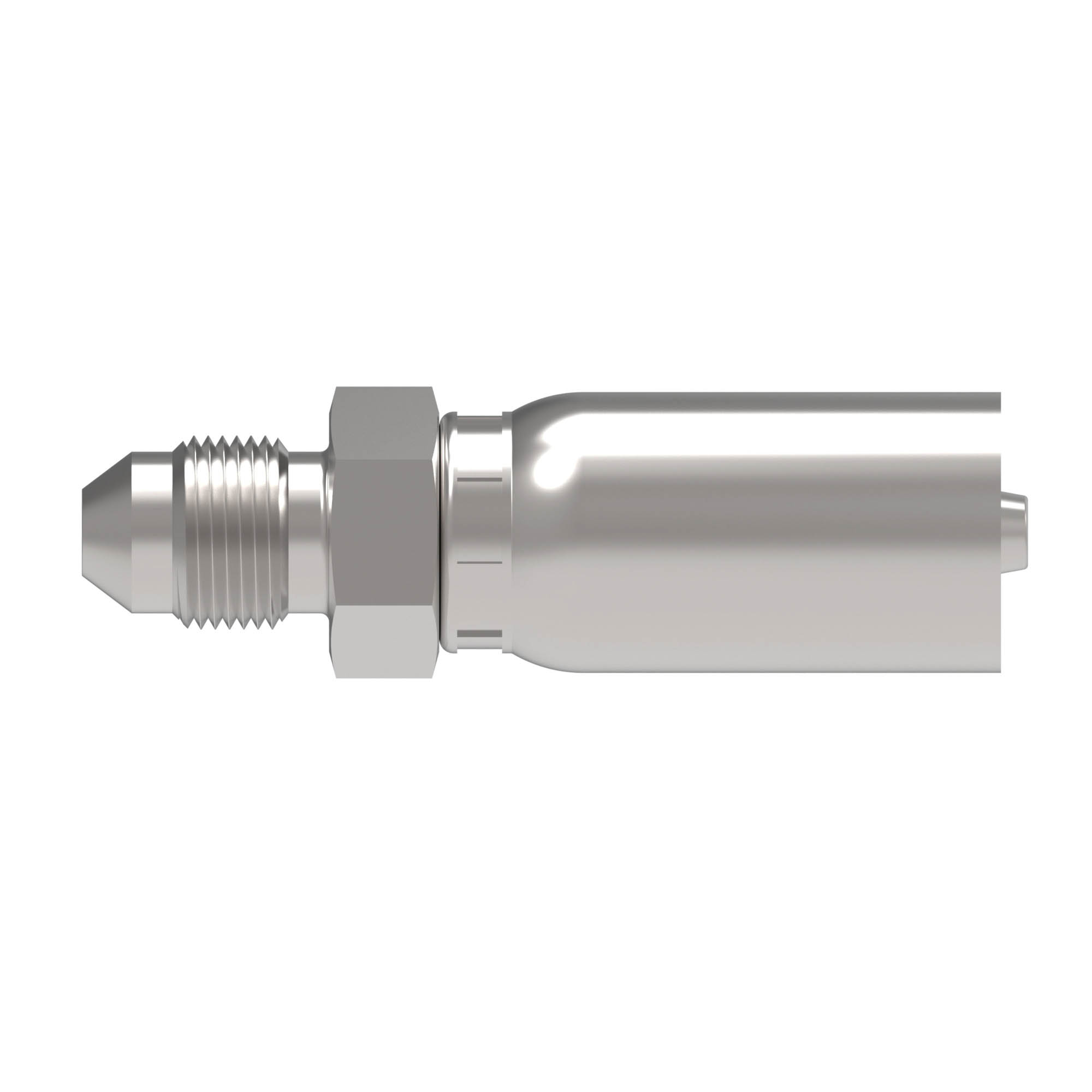

Synflex® by Danfoss 90H Series 390H-08508 Straight Hose Fitting, 1/2 in Hose x 1/2 in Male SAE 37 deg JIC, Steel
NASHVILLE, TN
Available at All Branches
Synflex® by Danfoss Straight Hose Fitting, 90H Series, Hose Fitting Fitting, 1/2 in Connection Size 1, Connection Type 1: Hose, 1/2 in Connection Size 2, Connection Type 2: Male SAE 37 deg JIC, Hose|Male JIC Connection, 08 Hose Dash, 1.38 in Cut-Off Factor, Steel, Material Construction: Carbon Steel, Finish: Zinc-Plated, 3/4-16 Thread, 7/8 in Hex, For Use With: 3R80, 3E80, 3630 and 3440 Series Hoses, 2.87 in L
| Connection Size 1 | : | 1/2 in |
| Connection Size 2 | : | 1/2 in |
| Connection Type 1 | : | Hose |
| Connection Type 2 | : | Male SAE 37 deg JIC |
| Connection Type | : | Hose|Male JIC |
| Cut-Off Factor | : | 1.38 in |
| Dimensions | : | 2.87 in L |
| Finish | : | Zinc-Plated |
| Fitting Type | : | Hose Fitting |
| For Use With | : | 3R80, 3E80, 3630 and 3440 Series Hoses |
| Hex Size | : | 7/8 in |
| Hose Dash Size | : | 08 |
| Material Construction | : | Carbon Steel |
| Material | : | Steel |
| Series | : | 90H Series |
| Thread Size | : | 3/4-16 |
