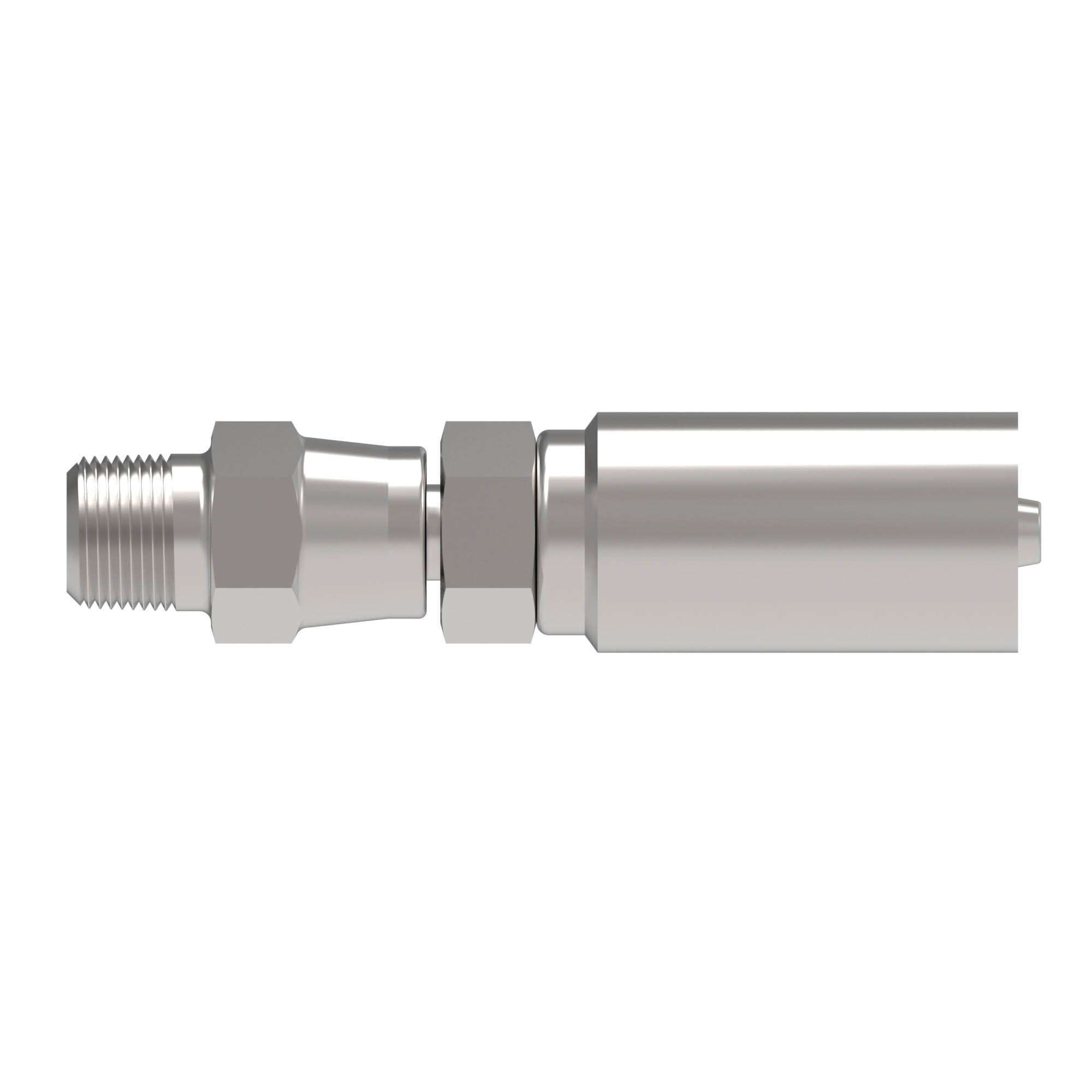

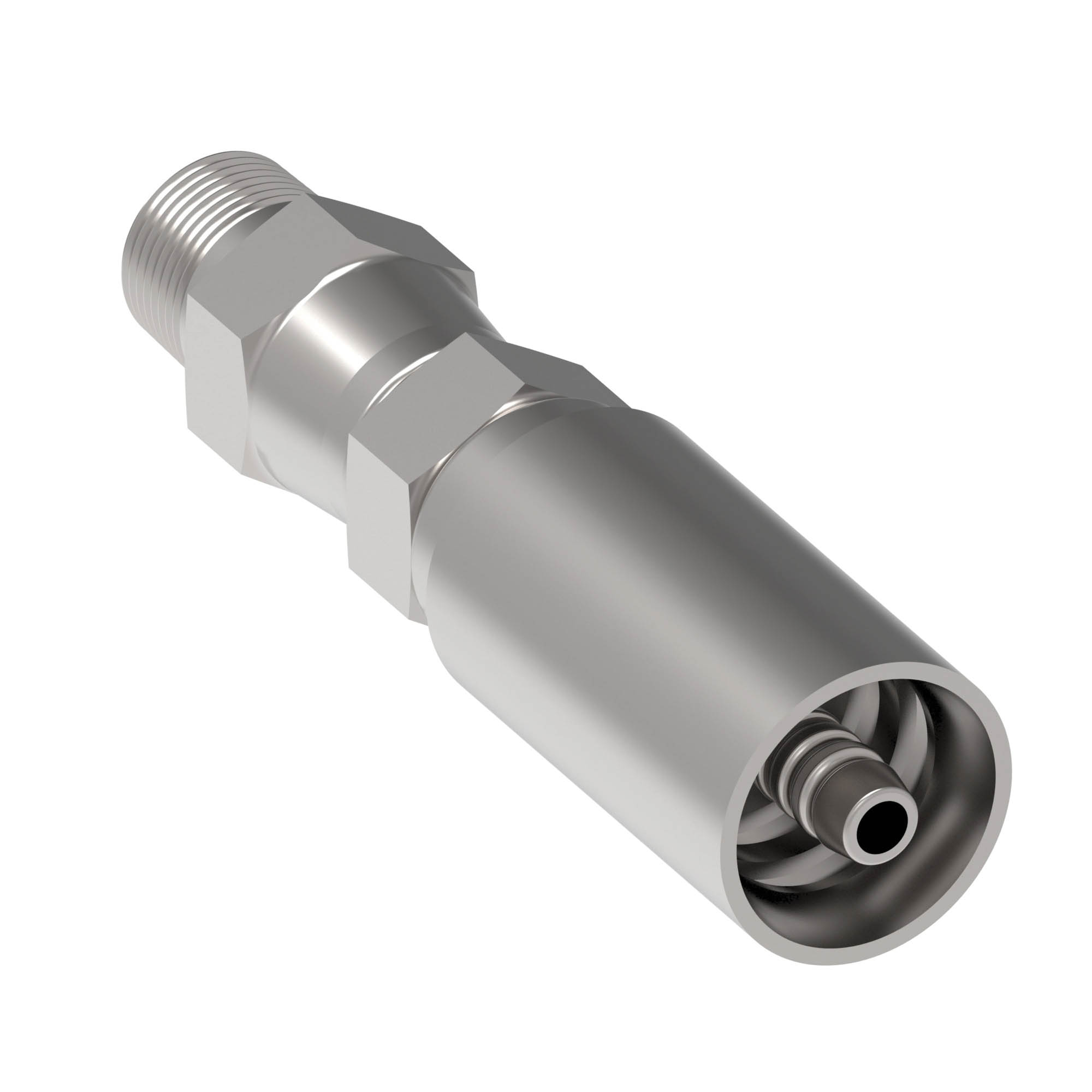

Synflex® by Danfoss 903 Series 90303-041400-0 Straight Hose Fitting, 3/16 in Hose x 1/4 in Male Swivel Pipe, Steel
NASHVILLE, TN
Available at All Branches
Synflex® by Danfoss Straight Hose Fitting, 903 Series, Hose Fitting Fitting, 3/16 in Connection Size 1, Connection Type 1: Hose, 1/4 in Connection Size 2, Connection Type 2: Male Swivel Pipe, Hose|Male Swivel Connection, 03 Hose Dash, 1.837 in Cut-Off Factor, Steel, Material Construction: Carbon Steel, Finish: Zinc-Plated, 1/4-18 Thread, 5/8 x 11/16 in Hex, For Use With: 25CT, 30CT, 3130, 3440, 3580, 3630, 3740, 37AL, 3800 and 3R30 Series Hoses, 2.64 in L x 0.63 in W x 0.63 in H
| Connection Size 1 | : | 3/16 in |
| Connection Size 2 | : | 1/4 in |
| Connection Type 1 | : | Hose |
| Connection Type 2 | : | Male Swivel Pipe |
| Connection Type | : | Hose|Male Swivel |
| Cut-Off Factor | : | 1.837 in |
| Dimensions | : | 2.64 in L x 0.63 in W x 0.63 in H |
| Finish | : | Zinc-Plated |
| Fitting Type | : | Hose Fitting |
| For Use With | : | 25CT, 30CT, 3130, 3440, 3580, 3630, 3740, 37AL, 3800 and 3R30 Series Hoses |
| Hex Size | : | 5/8 x 11/16 in |
| Hose Dash Size | : | 03 |
| Material Construction | : | Carbon Steel |
| Material | : | Steel |
| Series | : | 903 Series |
| Thread Size | : | 1/4-18 |
