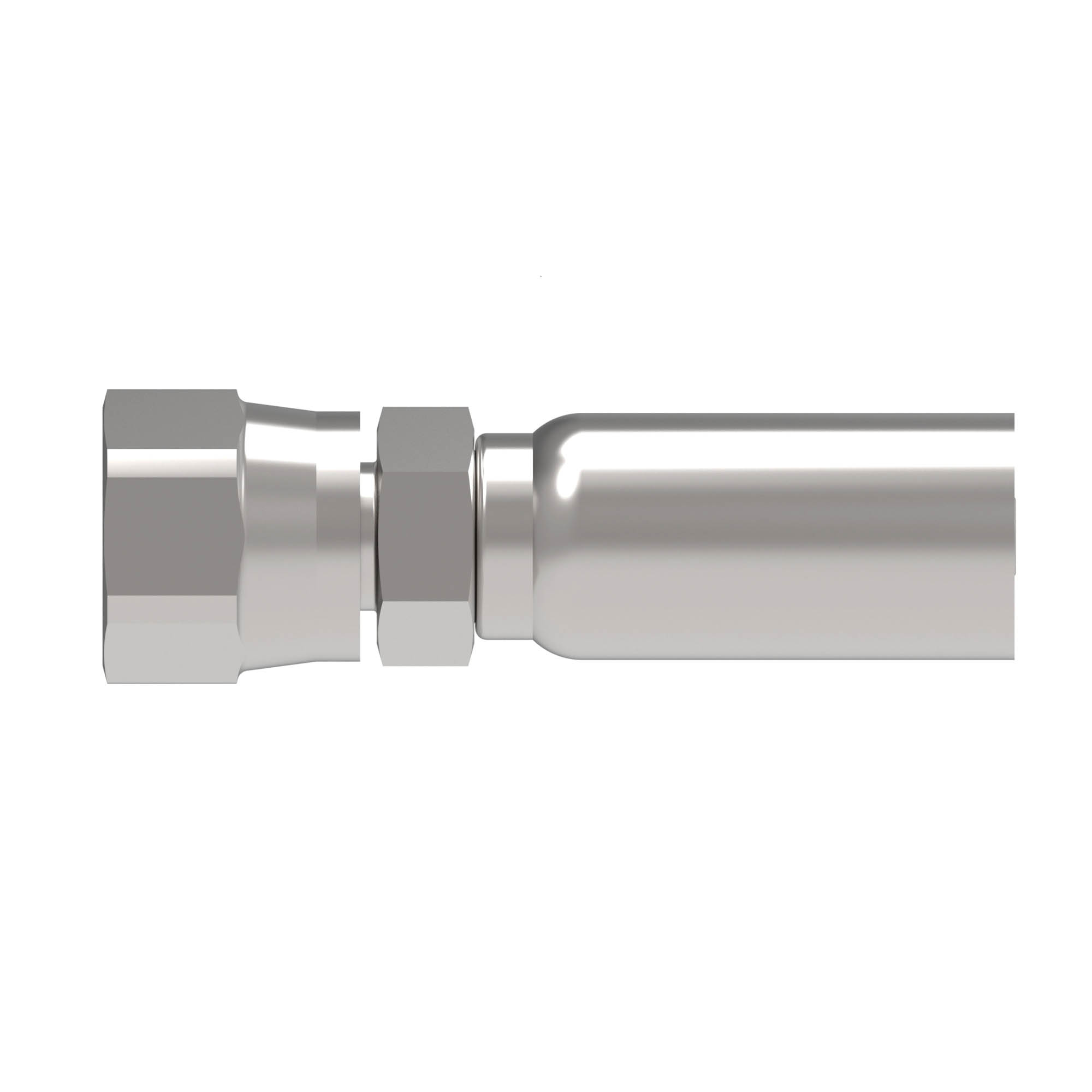

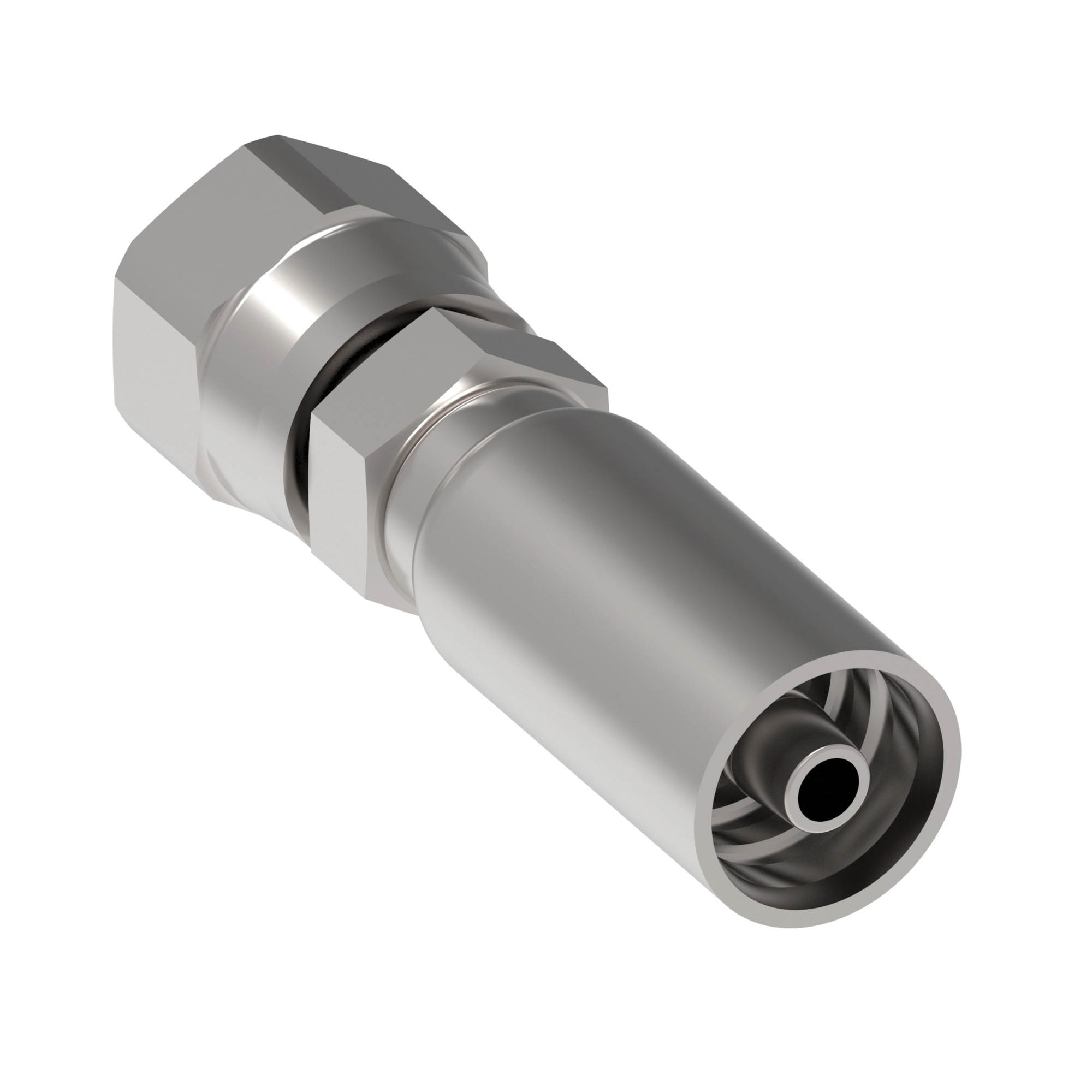

Synflex® by Danfoss 903 Series 90308-082400-0 Straight Hose Fitting, 1/2 in Hose x 1/2 in, Steel
NASHVILLE, TN
Available at All Branches
Synflex® by Danfoss Straight Hose Fitting, 903 Series, Hose Fitting Fitting, 1/2 in Connection Size 1, Connection Type 1: Hose, 1/2 in Connection Size 2, Connection Type 2: Female SAE 30 deg Inverted Flare NPSM, Hose|Female SAE Inverted Flared Connection, 08 Hose Dash, 1-1/2 in Cut-Off Factor, Steel, Material Construction: Carbon Steel, Finish: Zinc-Plated, 1/2-14 Thread, 1 in Hex, For Use With: 25CT, 30CT, 3130, 3440, 3580, 3630, 3740, 37AL, 3800 and 3R30 Series Hoses, 2.99 in L
| Connection Size 1 | : | 1/2 in |
| Connection Size 2 | : | 1/2 in |
| Connection Type 1 | : | Hose |
| Connection Type 2 | : | Female SAE 30 deg Inverted Flare NPSM |
| Connection Type | : | Hose|Female SAE Inverted Flared |
| Cut-Off Factor | : | 1-1/2 in |
| Dimensions | : | 2.99 in L |
| Finish | : | Zinc-Plated |
| Fitting Type | : | Hose Fitting |
| For Use With | : | 25CT, 30CT, 3130, 3440, 3580, 3630, 3740, 37AL, 3800 and 3R30 Series Hoses |
| Hex Size | : | 1 in |
| Hose Dash Size | : | 08 |
| Material Construction | : | Carbon Steel |
| Material | : | Steel |
| Series | : | 903 Series |
| Thread Size | : | 1/2-14 |
