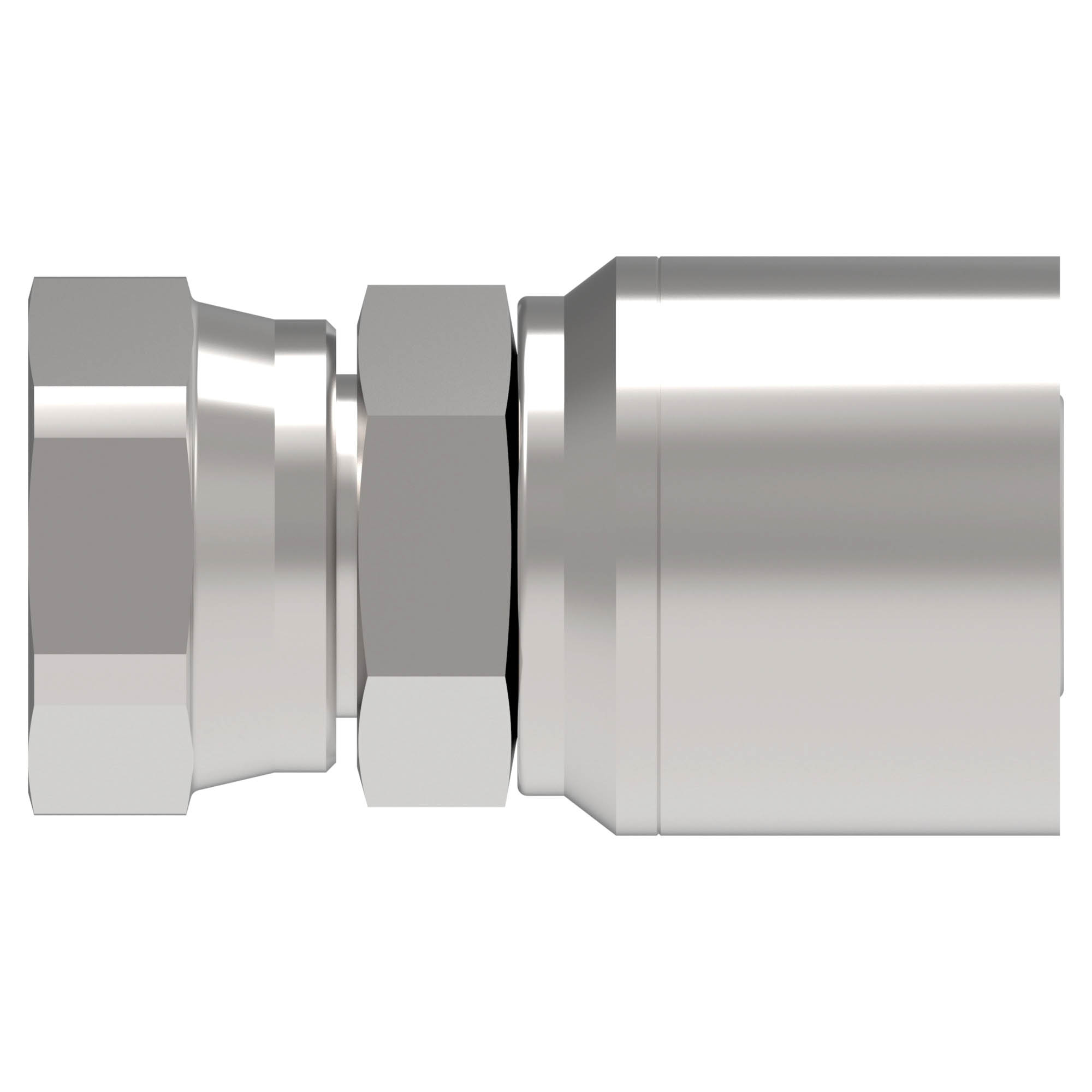

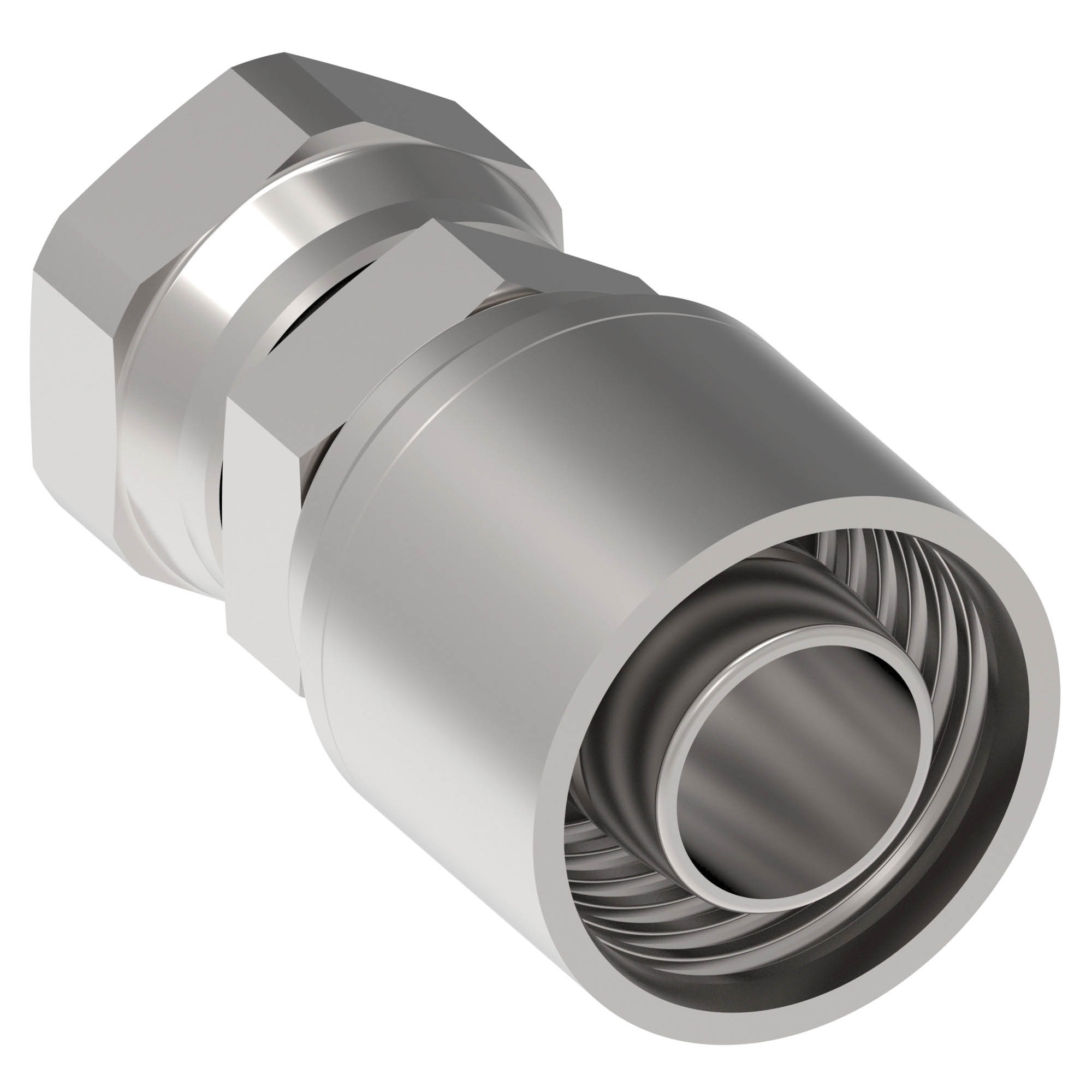

Synflex Optimum by Danfoss 4TA16SP16 HYS8-16-16 FPX

Synflex Optimum by Danfoss Straight Hose Fitting, 4T Series, Hose Fitting Fitting, 1 in Connection Size 1, Connection Type 1: Hose, 1 in Connection Size 2, Connection Type 2: FNPSM Swivel, Hose|FNPSM Swivel Connection, 16 Hose Dash, 1.8 in Cut-Off Factor, Steel, Material Construction: Carbon Steel, Finish: Zinc-Plated, 1-11-1/2 Thread, 1-3/8 x 1-1/2 in Hex, For Use With: 3TR18CT, 3TR8, 3TR8N, 3TR7 and 3TR7N Series Hoses, Additional Information: Nitrile Seal

• Synflex Optimum fittings are optimized to work together with Synflex Optimum thermoplastic hydraulic hoses
• Synflex Optimum 4TA fittings follow a simple one-piece design that reduces matching errors during assembly, eliminates brazing failure risks, and lowers assembly time
• A captive nut eliminates the weak spots found in other fittings and it evenly distributes the force applied during assembly, helping prevent cracks and leaks that halt workflows and lead to unplanned downtime
• Easier insertion, less force needed during assembly to push fitting onto hose
• Over 500+ combinations of terminal ends
• They have a compact design and smaller pro le making it easier for routing and assembly installation, especially in tight spaces
• Dura-Kote™ plating comes standard in our Synflex Optimum fittings
• Dura-Kote plating delivers up 3x the corrosion protection on carbon steel fittings as compared to competitive hose fittings and provides up to 1,000 hours of corrosion resistance

• Catalog https://assets.unilogcorp.com/267/ITEM/DOC/Synflex_4TA6FRA6_Catalog.pdf
• Catalog https://assets.unilogcorp.com/267/ITEM/DOC/Synflex_Optimum_by_Danfoss_4TA6FJ6_Catalog.pdf
