Tigerflex® STIG500X60 HSMAT-STIG-KURI-500
  1. pin-int

Tigerflex® STIG500X60 HSMAT-STIG-KURI-500

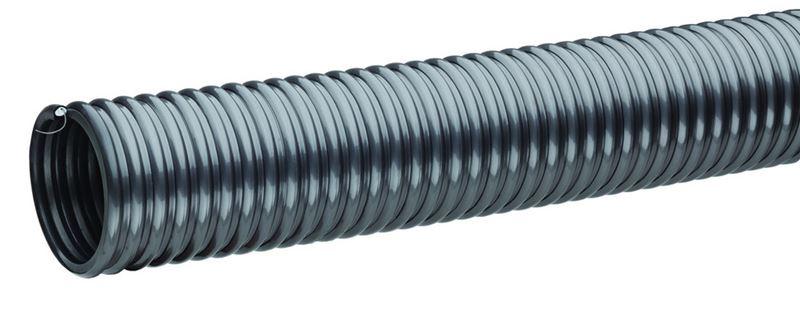

Tigerflex® STIG500 Series STIG500X60 Material Handling Hose, 5 in Nominal, 60 ft L, 18 to 35 psi, PVC Tube

  • Manufacturer: Kuriyama Fire Products
  • Brand Name: Tigerflex®
  • Part#: HSMAT-STIG-KURI-500
  • MPN: STIG500X60
  • UPC: 822353207017
  • Qty. Interval: 1
  • loading NASHVILLE, TN
  • loading Available at All Branches
  • UOM: FT

Tigerflex® Material Handling Hose, STIG500 Series, Flexible Hose, 5 in Nominal, 5 in Inside Diameter, 5.86 in Outside Diameter, 60 ft Length, PVC Tube, PVC Cover, Rigid PVC Helix Reinforcement, 16 in Bend Radius, 18 to 35 psi, Resistance Properties: Abrasion, Oil, Temperature High: 150 deg F, Temperature Low: -4 deg F, Additional Information: Polyurethane Liner

Additional Information      :      Polyurethane Liner
Bend Radius      :      16 in
Cover Material      :      PVC
Hose Type      :      Flexible
Inside Diameter      :      5 in
Length      :      60 ft
Nominal Size      :      5 in
Outside Diameter      :      5.86 in
Pressure Rating      :      18 to 35 psi
Reinforcement      :      Rigid PVC Helix
Resistance Properties      :      Abrasion, Oil
Series      :      STIG500 Series
Temperature High      :      150 deg F
Temperature Low      :      -4 deg F
Tube Material      :      PVC
  • Extra thick abrasion-resistant polyurethane liner - designed for dry applications where severe abrasion is a factor
  • Provides for longer hose life and lower operating costs versus rubber or PVC hoses
  • Grounding wire - multi-strand wire helps prevent the buildup of static electricity for added safety and to help keep material flowing smoothly
  • It's embedded within the rigid helix to prevent contamination of transferred materials
  • Convoluted outer cover - provides increased hose flexibility
  • Oil-resistant polyurethane liner - resists most animal and petroleum-based oils
  • Phthalate-free
  • Made in the USA
