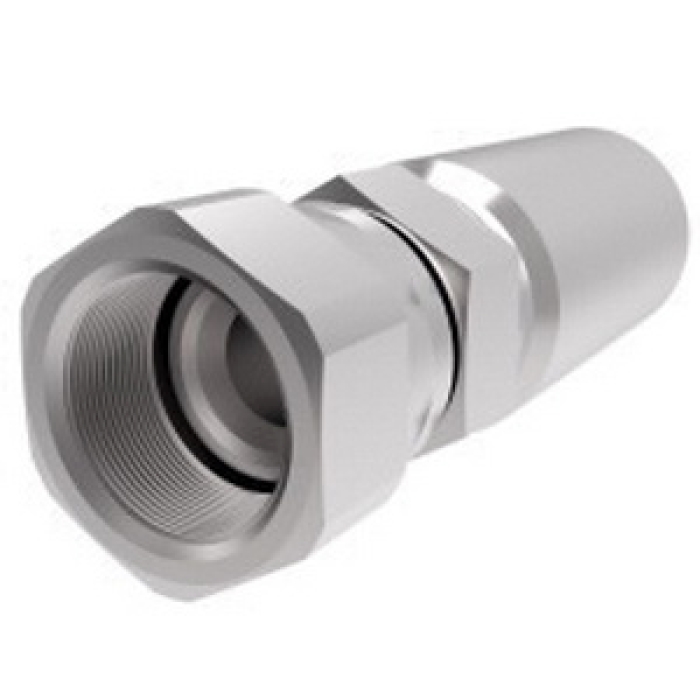

Aeroquip® by Danfoss Permanent Swage Straight Hose Fitting, 903 Series, Hose Fitting Fitting, 3/4 in Connection Size 1, Connection Type 1: Hose, 3/4 in Connection Size 2, Connection Type 2: Female SAE 37 deg JIC Swivel, Hose|Female JIC Swivel Connection, 12 Hose Dash, 1-3/4 in Cut-Off Factor, Steel, Material Construction: Steel, 1-1/16-12 Thread, 1-1/8 x 1-1/4 in Hex, For Use With: 3R30, 3130, 3740, 37AL, 3580, 25CT, 30CT, 3800 and Thermoplastic SAE 100R7 and 100R18 Hoses, 3.432 in L
| Connection Size 1 | : | 3/4 in |
| Connection Size 2 | : | 3/4 in |
| Connection Type 1 | : | Hose |
| Connection Type 2 | : | Female SAE 37 deg JIC Swivel |
| Connection Type | : | Hose|Female JIC Swivel |
| Cut-Off Factor | : | 1-3/4 in |
| Dimensions | : | 3.432 in L |
| Fitting Type | : | Hose Fitting |
| For Use With | : | 3R30, 3130, 3740, 37AL, 3580, 25CT, 30CT, 3800 and Thermoplastic SAE 100R7 and 100R18 Hoses |
| Hex Size | : | 1-1/8 x 1-1/4 in |
| Hose Dash Size | : | 12 |
| Material Construction | : | Steel |
| Material | : | Steel |
| Series | : | 903 Series |
| Thread Size | : | 1-1/16-12 |
- Permanently attached, plated steel, medium pressure hose end-type
