AIGNEP 50030N-6-1/8 BRM66PC 6-2

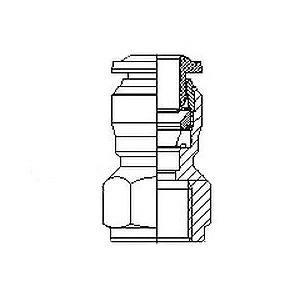

AIGNEP 50N Series 50030N-6-1/8 Straight Connector, 6 mm Push-Fit x 1/8 in Female BSP, Brass, Nickel-Plated

  • Manufacturer: Aignep USA
  • Brand Name: AIGNEP
  • Part#: BRM66PC 6-2
  • MPN: 50030N-6-1/8

AIGNEP 50N Series Straight Connector, Series: 50N Series, Connector Fitting, Connection Size 1: 6 mm, Connection Type 1: Push-Fit, Connection Size 2: 1/8 in, Connection Type 2: Female BSP, Push-Fit|Female BSP Connection, Brass, Nickel-Plated, For Use With: Polyethylene, Polyurethane, PTFE and FEP Tubing, 1.023 in L, 290 psi Maximum Operating Pressure, -4 to 176 deg F Operating

Connection Size 1      :      6 mm
Connection Size 2      :      1/8 in
Connection Type 1      :      Push-Fit
Connection Type 2      :      Female BSP
Connection Type      :      Push-Fit|Female BSP
Dimensions      :      1.023 in L
Finish      :      Nickel-Plated
Fitting Type      :      Connector
For Use With      :      Polyethylene, Polyurethane, PTFE and FEP Tubing
Material      :      Brass
Maximum Operating Pressure      :      290 psi
Operating Temperature      :      -4 to 176 deg F
Series      :      50N Series
  • The 303 stainless steel gripper ensures a tight clamp for tubes of any material without damaging the tube's surface
  • The secure connection between the tube and the fitting will hold up to severe conditions such as impact and vibrations
  • The shape of the safety ring and the molded seal perfectly seal off the tube, creating a vacuum
