BRENNAN 2505-12-12-FG HY12MJ-12FP45
  1. pin-int

BRENNAN 2505-12-12-FG HY12MJ-12FP45

BRENNAN 2505-12-12-FG 45 deg Elbow, 3/4 in Male SAE 37 deg JIC Flared x 3/4 in FNPTF, Steel

  • Manufacturer: Brennan Industries
  • Brand Name: BRENNAN
  • Part#: HY12MJ-12FP45
  • MPN: 2505-12-12-FG

BRENNAN 45 deg Elbow, Series: 2505, Fitting Type: 45 deg Elbow, Connection Size 1: 3/4 in, Connection Type 1: Male SAE 37 deg JIC Flared, Connection Size 2: 3/4 in, Connection Type 2: FNPTF, Connection Type: Male JIC|FNPT, Steel, Material Construction: Forged Steel, CR3 Zinc-Plated, 1-1/16-12 x 3/4-14 Thread, 1.312 in Hex, Maximum Operating Pressure: 4000 psi

Connection Size 1      :      3/4 in
Connection Size 2      :      3/4 in
Connection Type 1      :      Male SAE 37 deg JIC Flared
Connection Type 2      :      FNPTF
Connection Type      :      Male JIC|FNPT
Finish      :      CR3 Zinc-Plated
Fitting Type      :      45 deg Elbow
Hex Size      :      1.312 in
Material Construction      :      Forged Steel
Material      :      Steel
Maximum Operating Pressure      :      4000 psi
Series      :      2505 Series
Thread Size      :      1-1/16-12 x 3/4-14
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/BRENNAN_0302-04_Catalog.pdf

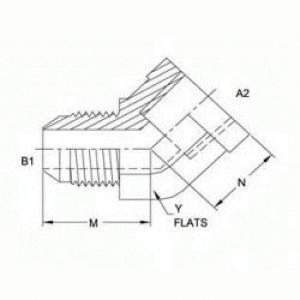

  • pdfLine Drawing https://assets.unilogcorp.com/267/ITEM/DOC/BRENNAN_2505-04-04-FG_Line_Drawing.pdf
