BRENNAN 6801-L-04-04-NWO-FG HY4MB-4MJ90L
  1. pin-int

BRENNAN 6801-L-04-04-NWO-FG HY4MB-4MJ90L

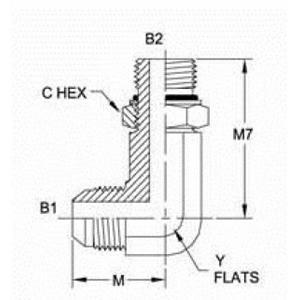

BRENNAN 6801-L-04-04-NWO-FG Long 90 deg Elbow, 1/4 in Male SAE ORB x 1/4 in Male SAE 37 deg JIC, Steel

  • Manufacturer: Brennan Industries
  • Brand Name: BRENNAN
  • Part#: HY4MB-4MJ90L
  • MPN: 6801-L-04-04-NWO-FG

BRENNAN Long 90 deg Elbow, Series: 6801-L-NWO, Fitting Type: 90 deg Elbow, Connection Size 1: 1/4 in, Connection Type 1: Male SAE ORB, Connection Size 2: 1/4 in, Connection Type 2: Male SAE 37 deg JIC, Material Construction: Forged Steel, 7/16-20 Thread, 0.563 in Hex, Dimension Standards: SAE 071520, Maximum Operating Pressure: 6000 psi

Connection Size 1      :      1/4 in
Connection Size 2      :      1/4 in
Connection Type 1      :      Male SAE ORB
Connection Type 2      :      Male SAE 37 deg JIC
Connection Type      :      Male SAE ORB|Male JIC
Dimension Standards      :      SAE 071520
Fitting Type      :      90 deg Elbow
Hex Size      :      0.563 in
Material Construction      :      Forged Steel
Material      :      Steel
Maximum Operating Pressure      :      6000 psi
Series      :      6801-L-NWO
Thread Size      :      7/16-20
